Mfr Part #:

32980001ZXM8

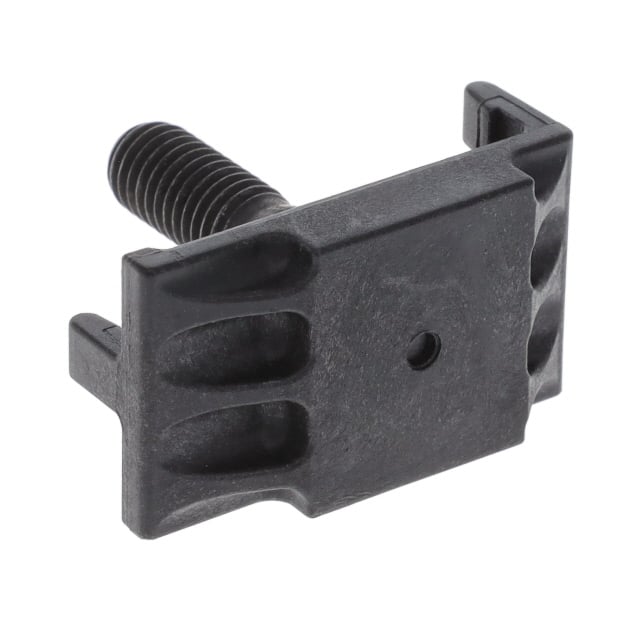

The Littelfuse Inc. 32980001ZXM8 is a bolt accessory designed for ZCASE fuses. It features M8 mounting and tin-plated copper terminals.

Stock on Request

32980001ZXM8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Littelfuse Inc.
Accessory Type	Bolt
For Use With	ZCASE
Housing Material	PPA-GF33HS
Operating Temperature	-40 °C to +125 °C
Voltage Rating	32 V DC

View Similar Products (0)

32980001ZXM8 Description

Short technical summary and product information.

The Littelfuse Inc. 32980001ZXM8 is a bolt accessory specifically designed for use with ZCASE fuses. This component facilitates the secure mounting of fuses, particularly in starter fuse applications.

Key specifications include compatibility with ZCASE systems and an M8 mounting size. The terminals are constructed from tin-plated copper, ensuring reliable conductivity. The accessory is rated for use in systems up to 32 V DC, aligning with the fuse's operational voltage.

This bolt is intended for direct connection to battery posts or busbar connections, offering a robust and compact solution for fuse integration. Its design optimizes for a one-bolt connection, simplifying installation in automotive and industrial applications where space may be a constraint.

32980001ZXM8 Quick Information

Product Type: Bolt

Canonical Name: Littelfuse Inc. 32980001ZXM8 Bolt for ZCASE

Subcategory: Bolt

32980001ZXM8 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

32980001ZXM8 Features

Rated for 32 V DC operation.
Interrupts 2000 A at 32 V DC.
Operates from -40 °C to +125 °C.
One-bolt M6 or M8 mounting connection.
Ceramic insulating tube for durability.

32980001ZXM8 Applications

Bolt for ZCASE starter fuse mounting.
Used with MEGA bolt-down fuse holders.
Suitable for battery post connections.
Ideal for busbar mounting applications.
Compatible with Littelfuse ZCASE systems.

32980001ZXM8 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the voltage rating for the Littelfuse Inc. 32980001ZXM8 bolt accessory?

The Littelfuse Inc. 32980001ZXM8 bolt accessory is rated for 32 V DC.

What is the recommended operating temperature range for this accessory?

The recommended operating temperature range is -40 °C to +125 °C.

What material are the terminals of the 32980001ZXM8 bolt made from?

The terminals are made from tin-plated copper.

What is the housing material for the Littelfuse Inc. 32980001ZXM8?

The housing material is PPA-GF33HS.

What is the mounting torque specification for the M8 bolt?

The mounting torque for the M8 bolt is 14 Nm ± 2 Nm.

What type of accessory is the Littelfuse Inc. 32980001ZXM8?

The Littelfuse Inc. 32980001ZXM8 is a bolt accessory.

What fuse system is the 32980001ZXM8 designed for?

The 32980001ZXM8 is designed for ZCASE fuses.
