3296Y-1-202LF The Bourns 3296Y-1-202LF is a 2 kΩ trimmer potentiometer featuring a ±10% tolerance and a 0.5W power rating. It is designed for through-hole mounting.
Mfr Part #:

3296Y-1-202LF

Available from 3 distributors
Mfr Name: Bourns
Bourns
The Bourns 3296Y-1-202LF is a 2 kΩ trimmer potentiometer featuring a ±10% tolerance and a 0.5W power rating. It is designed for through-hole mounting.
✓ Total Stock: 915 pcs
$ Price Range: $0.05

3296Y-1-202LF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3296Y-1-202LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Insulation Resistance
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Tape & Reel
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
Torque
Weight
View Similar Products (0)

3296Y-1-202LF Description

Short technical summary and product information.

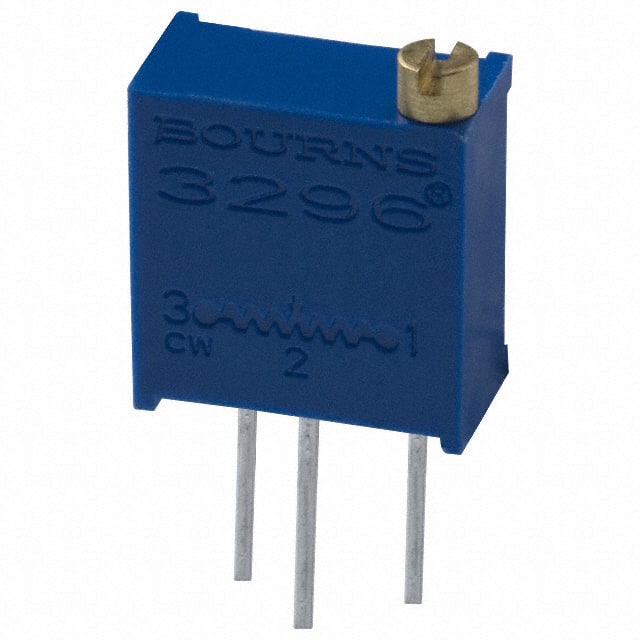

The Bourns 3296Y-1-202LF is a 3/8" square cermet trimmer potentiometer with a resistance value of 2 kΩ and a standard tolerance of ±10%. It offers a power rating of 0.5W at 70°C and features a top adjustment with 25 turns for precise control.



This industrial-grade potentiometer has a sealed design and is suitable for various applications requiring reliable resistance adjustment. It utilizes PC pins for termination and is designed for through-hole mounting. The operating temperature range is -55°C to +125°C, with a temperature coefficient of ±100ppm/°C.



The unit is packaged 50 pieces per tube and is listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035. It also features tape and reel packaging availability.

3296Y-1-202LF Quick Information

Product Type: Trimmer Potentiometer
Canonical Name: Bourns 3296Y-1-202LF Trimmer Potentiometer, 2 kΩ, ±10% Tolerance, 0.5W
Subcategory: Trimmer Potentiometer

3296Y-1-202LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3296Y-1-202LF Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3296Y-1-202LF Features

  • 2 kΩ resistance with ±10% tolerance.
  • 0.5W power rating at 70°C.
  • 25-turn adjustment for precision.
  • Cermet resistive element.
  • Through-hole mounting with PC pins.

3296Y-1-202LF Applications

  • Ideal for general purpose trimming.
  • Suitable for industrial control circuits.
  • Used in electronic test equipment.
  • Applicable in power supply adjustments.

3296Y-1-202LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3296Y-1-202LF trimmer potentiometer?

The resistance of the Bourns 3296Y-1-202LF trimmer potentiometer is 2 kΩ.

What is the tolerance of the 3296Y-1-202LF trimmer potentiometer?

The tolerance of the 3296Y-1-202LF trimmer potentiometer is ±10%.

What is the power rating for the 3296Y-1-202LF trimmer potentiometer?

The power rating for the 3296Y-1-202LF trimmer potentiometer is 0.5W at 70°C.

What is the temperature coefficient of the 3296Y-1-202LF trimmer potentiometer?

The temperature coefficient of the 3296Y-1-202LF trimmer potentiometer is ±100ppm/°C.

How many turns does the 3296Y-1-202LF trimmer potentiometer have?

The 3296Y-1-202LF trimmer potentiometer has 25 turns.

What type of adjustment does the 3296Y-1-202LF trimmer potentiometer feature?

The 3296Y-1-202LF trimmer potentiometer features top adjustment.

What is the resistive material of the 3296Y-1-202LF trimmer potentiometer?

The resistive material of the 3296Y-1-202LF trimmer potentiometer is Cermet.
