| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

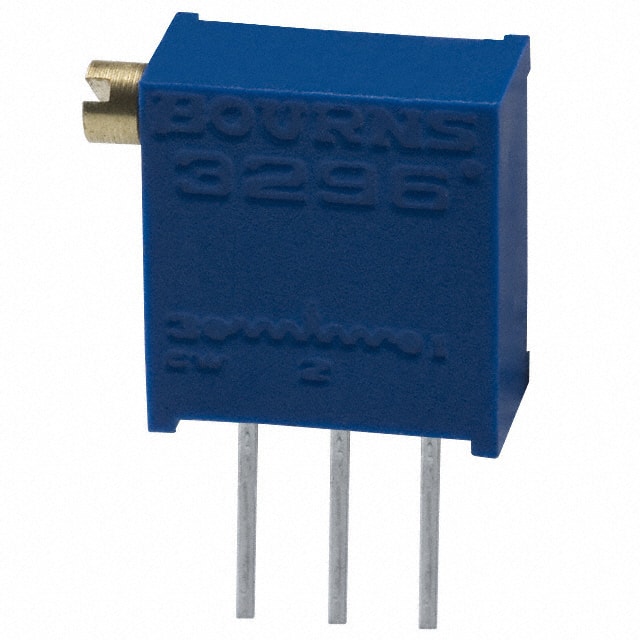

The Bourns 3296X-1-101ALF is a 3/8" square Trimpot® trimming potentiometer designed for industrial applications. It features a multiturn, sealed cermet construction with 25 turns for precise adjustment.
This trimmer potentiometer offers a resistance of 100 Ohms with a standard tolerance of ±10%. It is rated for 0.5W power at 70°C and has a wide operating temperature range of -55°C to +125°C. The temperature coefficient is ±100 PPM/°C.
Designed for through-hole mounting, it utilizes PC pin termination. The physical dimensions are rectangular, measuring 0.395" x 0.190" face (10.03mm x 4.83mm). The device is sealed with a chevron seal design and is listed on the QPL for specific military standards.
Environmental testing includes humidity, vibration, and shock resistance, with load life and rotational life specifications provided. It is RoHS compliant and has a Moisture Sensitivity Level of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Bourns 3296X-1-101ALF trimmer potentiometer is 100 Ohms.
The power rating is 0.5W at 70°C.
The temperature coefficient is ±100 PPM/°C.
This trimmer potentiometer has 25 turns.
It features a side adjustment.
The mounting type is through hole.
The standard packaging is 50 pieces per tube.
