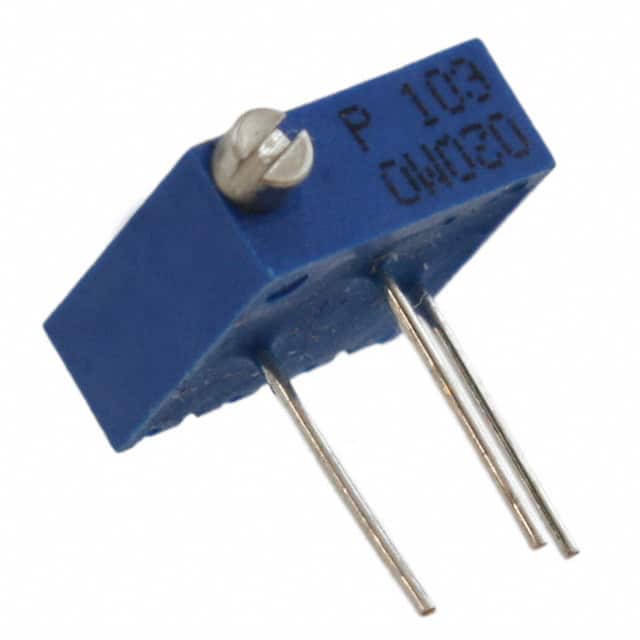

3292P-1-102LF The Bourns 3292P-1-102LF is a 1 kΩ trimmer potentiometer with a ±10% tolerance and 0.5W power rating. It features Cermet construction and PC pin termination.
Mfr Part #:

3292P-1-102LF

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 3292P-1-102LF is a 1 kΩ trimmer potentiometer with a ±10% tolerance and 0.5W power rating. It features Cermet construction and PC pin termination.
✓ Total Stock: 67 pcs
$ Price Range: $0.05

3292P-1-102LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
67 pcs
On Request
67 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3292P-1-102LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Resolution
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
Torque
Weight
View Similar Products (0)

3292P-1-102LF Description

Short technical summary and product information.

The Bourns 3292P-1-102LF is a 3/8 inch square Trimpot® trimming potentiometer. This cermet potentiometer offers a standard resistance range from 10 ohms to 1 megohm, with this specific unit rated at 1 kΩ with a ±10% tolerance.



It is designed for industrial applications and features a sealed, multiturn construction with 25 turns for precise adjustment. The power rating is 0.5 watt at 85 °C. The temperature coefficient is ±100 PPM/°C, and the operating temperature range spans from -65 °C to +150 °C.



Physical characteristics include a rectangular size of 0.375" x 0.150" face (9.53mm x 3.81mm) and PC pin termination for through-hole mounting. The Bourns 3292P-1-102LF is RoHS compliant and has an MSL rating of 1.

3292P-1-102LF Quick Information

Product Type: Trimmer Potentiometer
Series: Trimpot
Canonical Name: Bourns 3292P-1-102LF Cermet Trimmer Potentiometer
Subcategory: Cermet Trimmer

3292P-1-102LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3292P-1-102LF Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3292P-1-102LF Features

  • 1 kΩ resistance with ±10% tolerance.
  • 0.5W power rating at 85°C.
  • 25-turn multiturn adjustment.
  • Cermet resistive element.
  • Through-hole mounting with PC pins.

3292P-1-102LF Applications

  • Ideal for precise voltage division.
  • Used in control circuit calibration.
  • Suitable for industrial automation.
  • Component in electronic test equipment.

3292P-1-102LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3292P-1-102LF?

The resistance of the Bourns 3292P-1-102LF is 1 kΩ.

What is the tolerance for the 3292P-1-102LF trimmer potentiometer?

The tolerance for the 3292P-1-102LF is ±10%.

What is the power rating of the 3292P-1-102LF?

The power rating is 0.5W at 85°C.

What is the temperature coefficient of this Bourns trimmer potentiometer?

The temperature coefficient is ±100 PPM/°C.

How many turns does the 3292P-1-102LF have for adjustment?

The 3292P-1-102LF has 25 turns for adjustment.

What type of mounting is used for the 3292P-1-102LF?

The 3292P-1-102LF uses through-hole mounting.

What is the resistive material of the 3292P-1-102LF?

The resistive material is Cermet.
