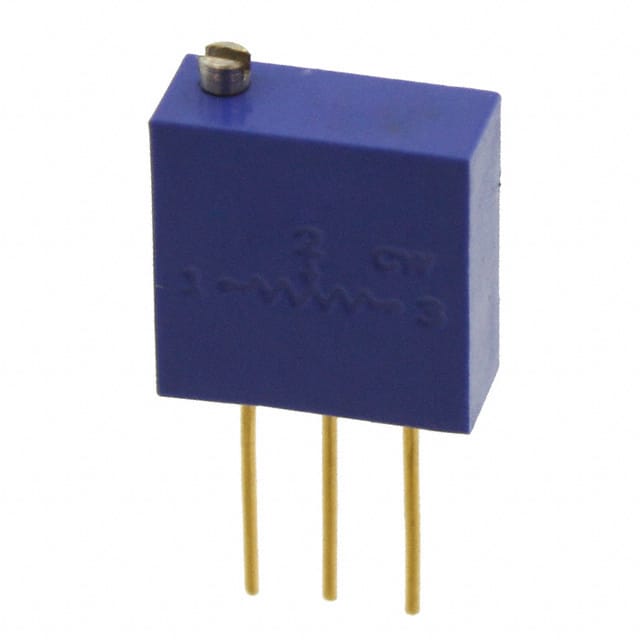

3290W-1-100 The Bourns 3290W-1-100 is a wirewound trimmer potentiometer with 10 Ohm resistance and a ±5% tolerance. It features a 1W power rating and is designed for through-hole mounting.
Mfr Part #:

3290W-1-100

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 3290W-1-100 is a wirewound trimmer potentiometer with 10 Ohm resistance and a ±5% tolerance. It features a 1W power rating and is designed for through-hole mounting.
✓ Total Stock: 3 pcs
$ Price Range: $0.05

3290W-1-100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3290W-1-100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Spacing
Mounting Type
Noise
Number of Turns
Power (Watts)
Resistance
Resistive Material
Storage Temperature
Tape & Reel
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
Torque
Weight
View Similar Products (0)

3290W-1-100 Description

Short technical summary and product information.

The Bourns 3290W-1-100 is a 3/8" square trimming potentiometer from the 3290 series. This multiturn, wirewound, industrial, and sealed potentiometer offers a resistance of 10 Ohms with a standard tolerance of ±5%. It is rated for 1.0 watt at 85 °C and operates within a temperature range of -65 °C to +150 °C.



Designed for through-hole mounting, the 3290W-1-100 features PC pin termination and a top adjustment type. Its environmental characteristics include resistance to vibration (30 G) and shock (100 G), with a rotational life of 200 cycles. The potentiometer is listed on the QPL for style RT24 per MIL-R-27208 and RTR24 per High-Rel MIL-R-39015.



This RoHS compliant trimmer is suitable for various industrial applications requiring precise resistance adjustments. The standard packaging is 50 pieces per tube.

3290W-1-100 Quick Information

Product Type: Trimmer Potentiometer
Canonical Name: Bourns 3290W-1-100 Trimming Potentiometer
Subcategory: Wirewound

3290W-1-100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3290W-1-100 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3290W-1-100 Features

  • Multiturn wirewound industrial trimmer potentiometer.
  • 10 Ohm resistance with ±5% tolerance.
  • Rated for 1.0 watt power at 85 °C.
  • Operates from -65 °C to +150 °C.
  • Through-hole mounting with PC pin termination.

3290W-1-100 Applications

  • Suitable for precision trimming in electronic circuits.
  • Used in industrial equipment for resistance adjustments.
  • Ideal for calibration of measurement devices.
  • Applied in aerospace systems requiring high thermal stability.
  • Utilized in test and measurement instrumentation.

3290W-1-100 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3290W-1-100 trimmer potentiometer?

The resistance is 10 Ohms.

What is the power rating of the 3290W-1-100?

The power rating is 1.0 watt at 85 °C.

What is the operating temperature range for this trimmer potentiometer?

The operating temperature range is -65 °C to +150 °C.

What is the adjustment type and mounting type for the 3290W-1-100?

It features a top adjustment type and through-hole mounting.

What is the standard packaging for the Bourns 3290W-1-100?

The standard packaging is 50 pieces per tube.
