| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
411 pcs
|
411 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Travel | |
| Adjustment Type | |
| Dielectric Strength (Maximum @ 80,000 Feet) | |
| Dielectric Strength (Maximum @ Sea Level) | |
| Insulation Resistance | |
| Lead Spacing | |
| Load Life | |
| Mounting Type | |
| Noise | |
| Number of Turns | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Resistive Material | |
| Rotational Life | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque |

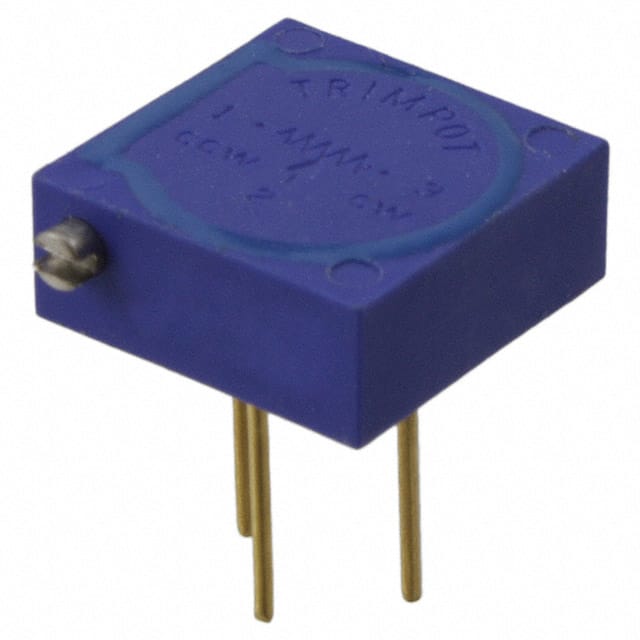

The Bourns 3290P-1-202 is a 3/8 inch square trimming potentiometer from the 3290 series. It is a multiturn, wirewound, industrial, and sealed potentiometer designed for trimmer applications.
This component features a resistance of 2 kΩ with a tolerance of ±5% and a power rating of 1W. The adjustment type is side adjustment, and it has 25 turns for precise control. The termination style is PC Pins, suitable for through-hole mounting.
Environmental specifications include a temperature range of -65°C to +150°C and a temperature coefficient of ±50ppm/°C. It is listed on the QPL for style RT24 per MIL-R-27208 and RTR24 per High-Rel MIL-R-39015. The standard packaging is 50 pieces per tube.
Key electrical characteristics include an insulation resistance of 1,000 megohms min. at 500 VDC and a dielectric strength of 1,000 VAC at sea level. The noise level is a maximum of 100 ohms ENR.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3290P-1-202 has a resistance value of 2 kΩ.
The power rating for the 3290P-1-202 is 1W.
The tolerance for the 3290P-1-202 is ±5%.
The temperature coefficient is ±50ppm/°C.
The 3290P-1-202 is designed for through-hole mounting.
The standard packaging is 50 pieces per tube.
