| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,279 pcs
|
1279 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Country of Origin | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Head Diameter | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Rated Voltage | |
| Style | |
| Tail Diameter | |
| Tape Width | |
| Termination |

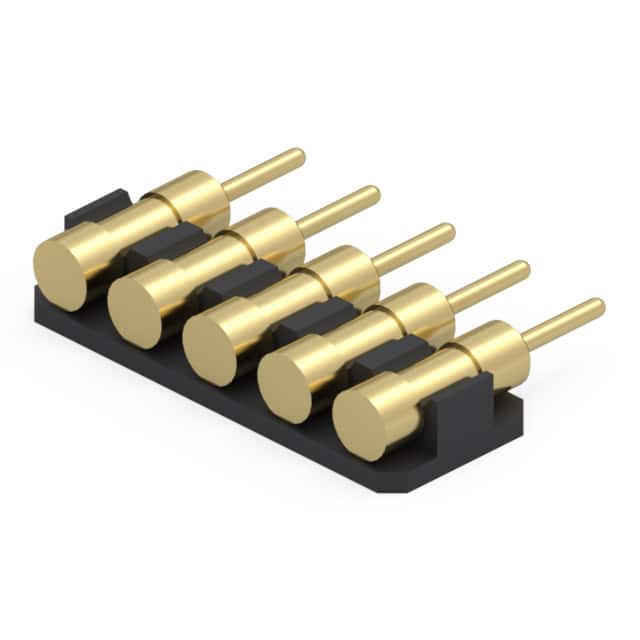

The Mill-Max 328-10-105-40-020001 is a 5 position single row male pin header with a 2.54mm (0.100") pitch. It features a surface mount right angle termination style, making it suitable for compact board-to-board connections. The contacts are made of brass alloy with a gold over nickel plating (10µ" gold over 100µ" nickel), ensuring reliable conductivity and corrosion resistance. The insulator is black polyamide (PA46) / Nylon 4/6.
Electrical specifications include a rated voltage of 100 VRMS / 150 VDC, insulation resistance of 10,000 MΩ minimum, and dielectric withstanding voltage of 1,000 VRMS minimum. The current rating is application specific and should be verified with the manufacturer for the intended use. The operating temperature range is -55°C to +125°C.
The header is packaged in Tape & Reel with 1,450 units per reel and a tape width of 24mm. It is RoHS3 compliant, REACH unaffected, and has a moisture sensitivity level of 1 (unlimited). This part is active and in production with no scheduled obsolescence.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.68 | $5.68 |
| 10+ | $4.83 | $4.83 |
| 100+ | $4.11 | $4.11 |
| 500+ | $3.66 | $3.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.54mm (0.100").
100 VRMS / 150 VDC.
Surface mount, right angle.
-55°C to +125°C.
10,000 MΩ minimum.
Gold over nickel, 10µ" gold over 100µ" nickel.
