| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
395 pcs
|
395 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Style | |
| Termination |

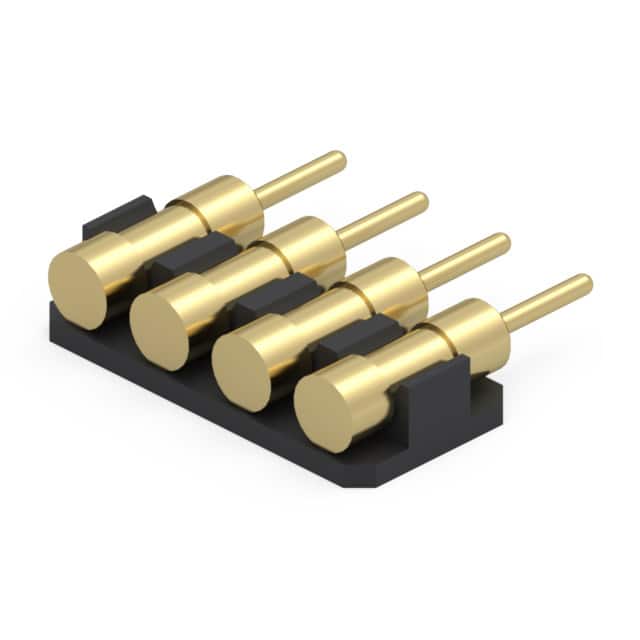

The Mill-Max 328-10-104-40-020001 is a 4-position, single row board-to-board header designed for surface mount right angle assembly. It features male pins with a 2.54mm (0.100") pitch and all positions loaded. Contacts are made of brass alloy with a gold finish of 10.0µin (0.25µm), ensuring reliable conductivity and corrosion resistance. The insulation is black polyamide (PA46) Nylon 4/6 with a height of 2.10mm (0.083"), providing mechanical stability. Contact length is 3.18mm (0.125") with an overall contact length of 0.330" (8.38mm). The fastening type is push-pull, suitable for secure board-to-board connections. This header is terminated by solder and is RoHS compliant (unverified). Its right angle orientation enables space-saving designs in compact electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.49 | $5.49 |
| 10+ | $4.66 | $4.66 |
| 100+ | $3.96 | $3.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions in a single row, all loaded.
The pitch is 2.54mm (0.100").
Surface Mount, Right Angle.
Gold plating with a thickness of 10.0µin (0.25µm).
Polyamide (PA46) Nylon 4/6, colored black.
