| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range (flexible) | |
| AWG Range (solid) | |
| Connection Standard | |
| Current | |
| Current (Nominal) | |
| Features | |
| Flammability | |
| Flammability Class | |
| Flexible Conductor Cross Section (Minimum/Maximum) | |
| Height | |
| Housing Color | |
| Insulation Group | |
| Lead Style | |
| Length | |
| Max Load Current | |
| Max Power Dissipation (Nominal) | |
| Mounting Type | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Number of Potentials | |
| Overvoltage Category | |
| Package Quantity | |
| Pollution Degree | |
| Rated Impulse Withstand Voltage | |
| Solid Conductor Cross Section (Minimum/Maximum) | |
| Stripping Length | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage (Nominal) | |
| Width | |
| Wire Gauge or Range |

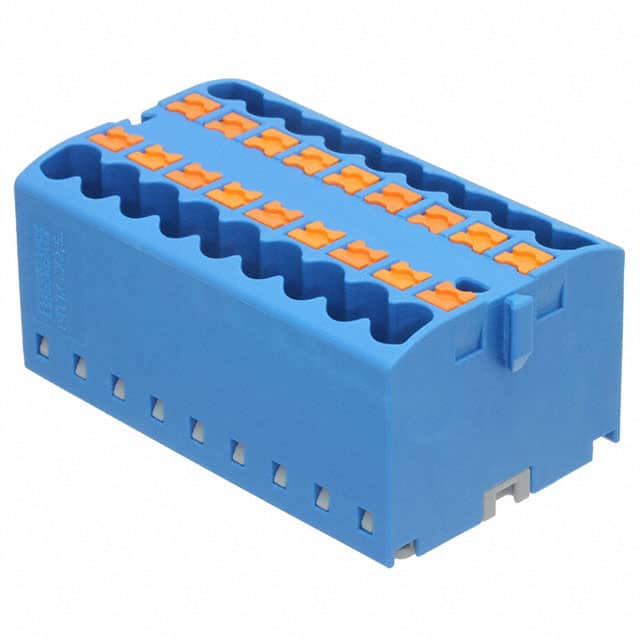

The Phoenix Contact 3273440 is a distribution block designed for efficient power distribution in industrial and building applications. It features 18 positions with a single potential, using push-in spring termination for tool-free, fast wiring of solid and flexible conductors from 0.14 to 4 mm² (AWG 26–12 for solid, 26–14 for flexible).
Rated at 24 A (nominal) and 500 V, the block handles impulse withstand voltages up to 6 kV and meets pollution degree 3, overvoltage category III, and insulation group I specifications. The blue housing is rated UL 94 V0 for flammability. Direct mount installation simplifies integration without DIN rails.
Dimensions are 46.5 mm wide, 21.2 mm high, and 28.2 mm long. Stripping length is 8–10 mm. The block is delivered in packages of 8 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.79 | $5.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This distribution block has 18 positions.
The nominal rated current is 24 A with a maximum load current of 24 A.
The nominal voltage is 500 V.
It uses direct mount (no DIN rail required).
Solid conductors: 0.14–4 mm² (AWG 26–12); flexible conductors: 0.14–2.5 mm² (AWG 26–14).
The housing has UL 94 V0 flammability class.
Width: 46.5 mm, height: 21.2 mm, length: 28.2 mm.
