| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Housing Color | |
| Lead Style | |
| Mounting Type | |
| Nominal Current | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Rated Cross Section (Line Contact) | |
| Rated Surge Voltage | |
| Rated Voltage | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight per Piece (including packing) | |
| Wire Gauge or Range |

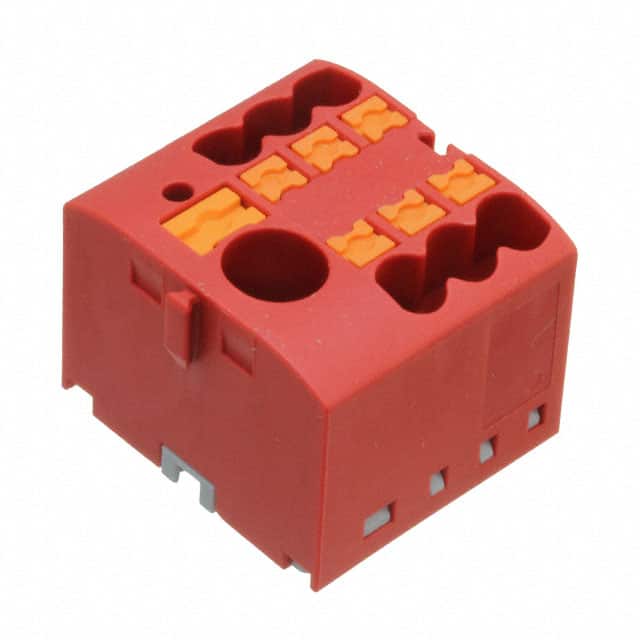

The Phoenix Contact 3273334 PTFIX 6/6X2,5 RD is a distribution block designed for power distribution applications. It features 7 connections with a nominal current of 41 A and a rated voltage of 450 V. The block uses push-in connection technology for tool-free conductor termination, supporting wire sizes from 8 to 20 AWG.
The distribution block can be mounted directly with a flange, snapped onto a DIN rail adapter, or used free-hanging. Its red housing aids in color-coded wiring schemes. The blocks can be bridged via the conductor shaft using optional plug-in bridges, enabling flexible power distribution layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.39 | $2.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current is 41 A per the datasheet.
The rated voltage is 450 V.
It has 7 connections.
It accepts 8-20 AWG wire.
It can be mounted directly with a flange, snapped onto a DIN rail adapter, or used free-hanging.
