| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Color | |
| Current | |
| Degree of Pollution | |
| Features | |
| Flammability Rating | |
| Height | |
| Housing Color | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Maximum Load Current | |
| Maximum power dissipation | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Cross Section | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Number of Potentials | |
| Overvoltage Category | |
| Packing Unit | |
| Rated Surge Voltage | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight per Piece | |
| Width | |
| Wire Cross-Section (Max) | |
| Wire Cross-Section (Min) | |
| Wire Gauge or Range |

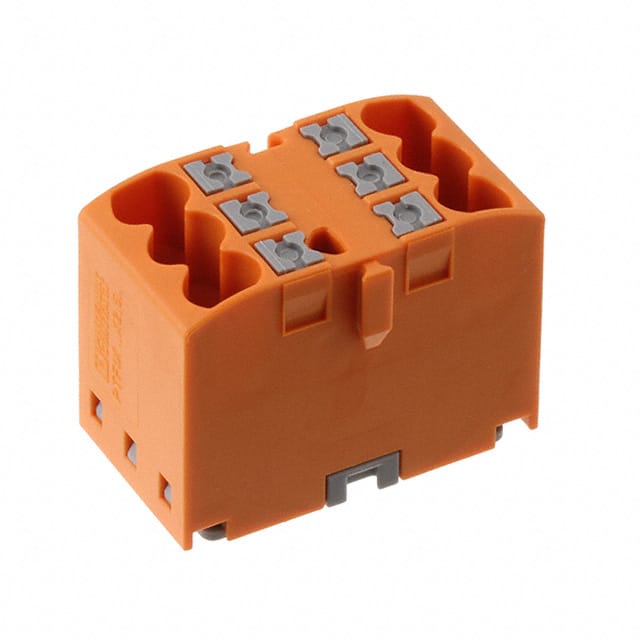

The Phoenix Contact 3273282 PTFIX 6X2,5 OG is a distribution block designed for efficient power distribution in control cabinets and junction boxes. It features 6 push-in connections accepting wire cross sections from 0.14 mm² to 4 mm² (AWG 26-12) with a nominal cross section of 2.5 mm². Rated for 24 A nominal current and 500 V nominal voltage, it supports a rated surge voltage of 6 kV and overvoltage category III with pollution degree 3.
The block is housed in orange PA (polyamide) insulating material with a V0 flammability rating per UL 94. It offers flexible mounting options including DIN rail mounting, direct mounting, or adhesive mounting. The compact design measures 15.6 mm wide and 21.2 mm high, weighing 12 g per piece. Maximum power dissipation under nominal conditions is 0.77 W.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.86 | $1.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 A
500 V
6 connections
0.14 mm² to 4 mm² (AWG 26-12)
DIN rail mounting, direct mounting, or adhesive mounting
V0 per UL 94
