| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connection Method | |
| Current | |
| Degree of Pollution | |
| Features | |
| Housing Color | |
| Lead Spacing | |
| Lead Style | |
| Line Contact Cross Section Range | |
| Line Contact Rated Cross Section | |
| Load Contact Cross Section (Flexible with Ferrule) | |
| Load Contact Cross Section (Flexible) | |
| Load Contact Cross Section (Rigid) | |
| Maximum Load Current | |
| Maximum Power Dissipation (Nominal Condition) | |
| Maximum Total Current | |
| Mounting Type | |
| Nominal Cross Section | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Number of Potentials | |
| Overvoltage Category | |
| Packaging Unit | |
| Rated Cross Section (AWG) | |
| Rated Surge Voltage | |
| Stripping Length | |
| Terminal | |
| Terminal Dimension | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight per Piece | |
| Wire Gauge Range (Load Contact) | |
| Wire Gauge or Range |

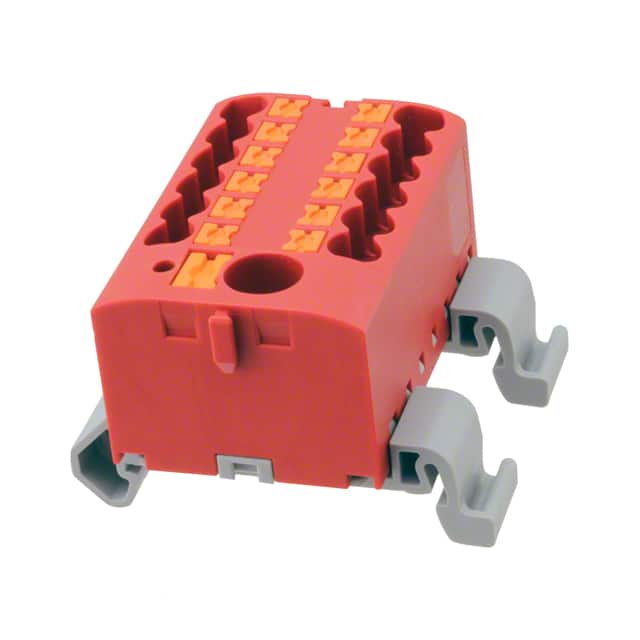

The Phoenix Contact 3273224 is a distribution block designed for efficient power distribution in control cabinets. It has 13 connections in a single level, supporting push-in connection technology for tool-free wiring. Electrical ratings include a nominal voltage of 690 V and nominal current of 24 A, with a maximum load current of 32 A (at 4 mm² conductor) and maximum total current of 57 A (at 10 mm²).
This block mounts on DIN rails NS 35/7.5 or NS 35/15, saving up to 50% space on the rail due to transverse mounting. The red housing aids in identification. Overvoltage category III and pollution degree 3 ensure reliability in industrial environments. Rated surge voltage is 8 kV, and power dissipation is 0.77 W under nominal conditions.
Typical applications include power distribution in automation systems, sensor/actuator wiring, and machinery. The block is delivered in packing units of 8 pieces, each weighing 34.14 g.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.39 | $4.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 13 connections.
690 V.
24 A, with maximum load current up to 32 A (4 mm²) and maximum total current 57 A (10 mm²).
DIN rail, specifically NS 35/7.5 and NS 35/15.
Push-in connection for tool-free wiring.
Red.
