| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Country of Origin | |
| Current | |
| Housing Color | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Storage Temperature | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

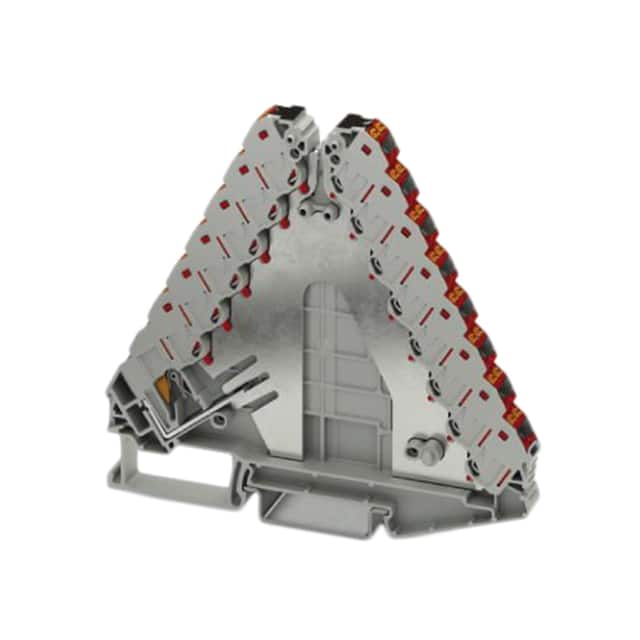

The Phoenix Contact 3270224 PTRVB 8-FI /RD is a potential distributor terminal block designed for tool-free wiring in confined spaces. It features push-in connection technology as a replacement for Wire-Wrap and TERMI-POINT, providing high contact quality. The block has 2 positions, 29 connections, and 8 levels, with a supply option up to 6 mm².
Electrical ratings include a nominal voltage of 250 V, a rated surge voltage of 4 kV, overvoltage category III, and insulating material group I. The nominal current is 17.5 A with a 1.5 mm² conductor, with a maximum load current of 24 A per chamber using 2.5 mm² and a maximum total current of 37 A per potential distributor. Power dissipation is 0.56 W per level at nominal condition.
The housing is made of gray PA (polyamide) with UL 94 V0 flammability rating. Operating temperature range is -60 °C to 85 °C, with storage temperature -25 °C to 55 °C. The block mounts on DIN rails NS 35/7.5 and NS 35/15. Each piece weighs 46 g, and the packing unit is 10 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $35.16 | $35.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
17.5 A with a 1.5 mm² conductor.
24 A per chamber with a 2.5 mm² conductor.
250 V.
DIN Rail (NS 35/7.5 and NS 35/15).
-60 °C to 85 °C.
UL 94 V0.
