| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Assembly | |
| Connection Standard | |
| Current | |
| Current Rated (Nominal @ with 1.5 mm² conductor cross section) | |
| Current Rated (Nominal @ with 4 mm² conductor cross section) | |
| Flammability Rating | |
| Housing Color | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Maximum Load Current | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Cross Section | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Open Side Panel | |
| Overvoltage Category | |
| Packing Unit | |
| Rated Surge Voltage | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| Wire Gauge (AWG) | |
| Wire Gauge or Range |

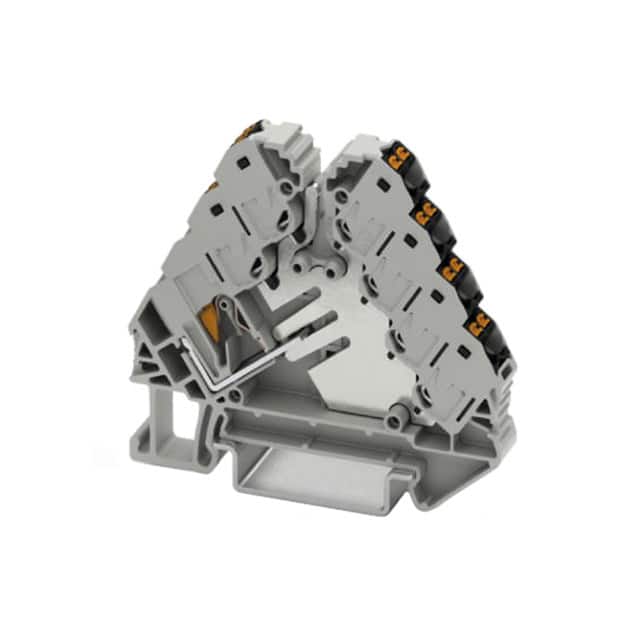

The Phoenix Contact 3270158 is a marshalling connector designed for potential distribution in control cabinets. It features 16 positions across 4 levels, allowing for compact wiring. The push-in connection technology enables tool-free wiring for solid conductors and ferruled stranded conductors. The connector is rated for 250V nominal voltage and 17.5A nominal current with 1.5mm² conductor cross section, with a maximum load current of 32A when using 6mm² conductors. It meets IEC 60947-7-1 standards and has a rated surge voltage of 4kV, overvoltage category III. The housing is gray PA material with UL 94 V0 flammability rating. Mounting is on DIN rails NS 35/7.5 or NS 35/15. The open side panel allows for bridging. Packing unit is 1 piece, minimum order quantity 10 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.14 | $18.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
17.5 A with 1.5 mm² conductor, 32 A with 4 mm² conductor, maximum 32 A.
250 V nominal.
DIN Rail (NS 35/7.5, NS 35/15).
4 levels.
Push In, Spring.
0.14-2.5 mm² (12-26 AWG).
