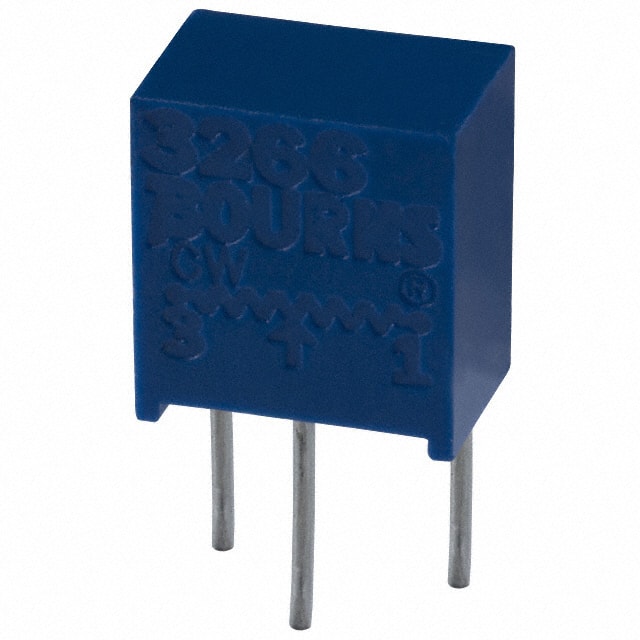

3266X-1-103LF The Bourns 3266X-103LF is a 10 kΩ Cermet trimmer potentiometer with ±10% tolerance and a 0.25W power rating. It features a through-hole mounting type and side adjustment.
Mfr Part #:

3266X-1-103LF

Available from 4 distributors
Mfr Name: Bourns
Bourns
The Bourns 3266X-103LF is a 10 kΩ Cermet trimmer potentiometer with ±10% tolerance and a 0.25W power rating. It features a through-hole mounting type and side adjustment.
✓ Total Stock: 17,296 pcs
$ Price Range: $0.05

3266X-1-103LF Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3266X-1-103LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Insulation Resistance
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Resolution
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
Torque
Weight
View Similar Products (0)

3266X-1-103LF Description

Short technical summary and product information.

This Bourns 3266X-103LF is a 1/4 inch square trimming potentiometer designed for industrial applications. It features a Cermet resistive element, offering a resistance of 10 kΩ with a tolerance of ±10%. The potentiometer has a power rating of 0.25W at 70 °C and an infinite resolution.



With 12 turns, it provides precise adjustment via a side slot. The effective travel is 12 turns nominal. The operating temperature range is -55 °C to +125 °C, with a temperature coefficient of ±100 PPM/°C. The unit is sealed and features standoffs for PC board washing.



Physical characteristics include a rectangular size of 0.250" x 0.170" face (6.35mm x 4.32mm). It is designed for through-hole mounting and has solderable pins for termination. The device is RoHS3 compliant and has an MSL of 1.

3266X-1-103LF Quick Information

Product Type: Trimmer Potentiometer
Series: 3266
Canonical Name: Bourns 3266X-1-103LF Cermet Trimmer Potentiometer
Subcategory: Trimmer Potentiometer

3266X-1-103LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3266X-1-103LF Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3266X-1-103LF Features

  • 10 kΩ Cermet trimmer potentiometer.
  • 12 turns for precise adjustment.
  • 0.25W power rating at 70 °C.
  • Through-hole mounting with side adjustment.
  • Operating temperature range -55 to +125 °C.

3266X-1-103LF Applications

  • Industrial control systems.
  • Test and measurement equipment.
  • Automotive electronics.
  • Consumer electronics.
  • Telecommunications devices.

3266X-1-103LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3266X-103LF trimmer potentiometer?

The resistance is 10 kΩ.

What is the tolerance of the 3266X-103LF trimmer potentiometer?

The tolerance is ±10%.

What is the power rating for the Bourns 3266X-103LF?

The power rating is 0.25W at 70 °C.

What is the temperature coefficient of this trimmer potentiometer?

The temperature coefficient is ±100 PPM/°C.

How many turns does the 3266X-103LF have?

It has 12 turns.

What is the operating temperature range for the 3266X-103LF?

The operating temperature range is -55 °C to +125 °C.

What type of material is used for the resistive element?

Cermet is used for the resistive element.
