| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
482 pcs
|
482 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

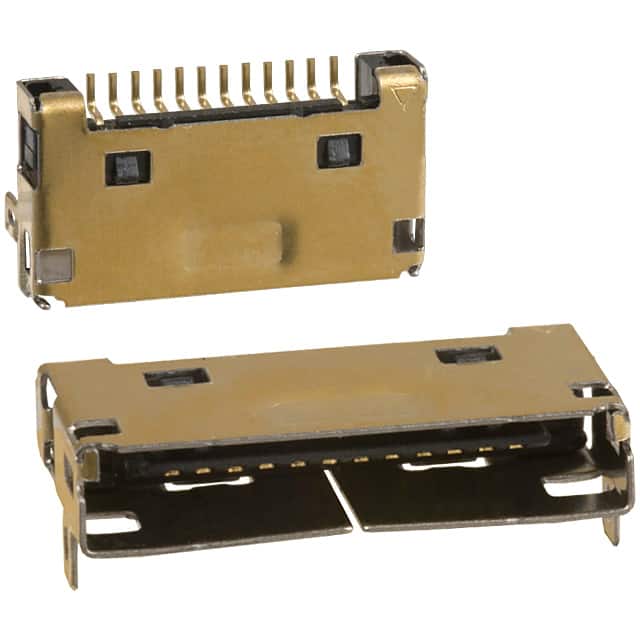

The 3260B-12S3(56) is a 12-position receptacle connector from Hirose Electric, part of the 3260B series. It features a 0.80mm pitch and single row configuration. The connector is designed for board-to-cable/wire connections and utilizes a surface mount, right-angle mounting type with solder termination. It includes a latch holder for secure fastening and is shielded with board guide features. The contacts are gold plated with a thickness of 8.00µin (0.203µm). Electrical ratings include 500mA current and 125VAC voltage. The insulation is black, with a height of 2.90mm, and the material has a flammability rating of UL94 V-0. This connector is suitable for compact electronic devices requiring reliable signal transmission. The shielded design helps reduce electromagnetic interference. The board guide assists in alignment during assembly. The latch holder ensures a secure connection to the mating cable connector.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.02 | $3.02 |
| 10+ | $2.57 | $2.57 |
| 25+ | $2.41 | $2.41 |
| 50+ | $2.29 | $2.29 |
| 100+ | $2.18 | $2.18 |
| 300+ | $2.02 | $2.02 |
| 500+ | $1.95 | $1.95 |
| 1,000+ | $1.86 | $1.86 |
| 2,500+ | $1.74 | $1.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
0.80mm.
500mA per contact.
125VAC.
Surface mount, right angle.
Gold with 8.00µin thickness.
Latch holder.
