| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,500 pcs
|
27500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Width | |
| Wire Gauge |

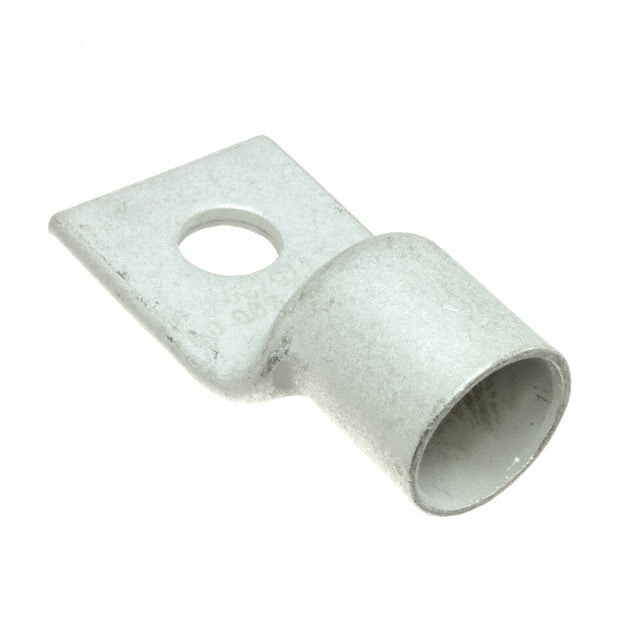

The TE Connectivity 325805-1 is a standard rectangular terminal from the AMPOWER series, designed for heavy-duty electrical connections. It accommodates 300 MCM (kcmil) wire gauge and features a 1/2 inch stud size for secure mounting. The terminal is non-insulated and uses a crimp, barrel termination for reliable wire attachment. It is intended for free hanging (in-line) installation.
The terminal has a tab thickness of 4.06mm (0.160"), a length of 68.33mm (2.690"), and a width of 35.56mm (1.400"). These dimensions make it suitable for high-current applications where space is not a constraint. The single stud hole style allows for connection to a bus bar or terminal block.
Environmental compliance includes EU RoHS compliant, EU ELV compliant, and China RoHS 2 compliant with no restricted materials above threshold. It does not contain REACH SVHC according to the current ECHA candidate list. The halogen content has not yet been reviewed. The part is active and not mil-spec certified.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.23 | $25.23 |
| 10+ | $21.44 | $21.44 |
| 25+ | $20.10 | $20.10 |
| 50+ | $19.14 | $19.14 |
| 100+ | $18.23 | $18.23 |
| 250+ | $17.09 | $17.09 |
| 500+ | $16.27 | $16.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The terminal is designed for 300 MCM (kcmil) wire gauge.
It fits a 1/2 inch stud.
No, it is non-insulated.
It uses a crimp, barrel termination.
Free hanging (in-line) mounting.
Length 68.33mm, width 35.56mm, tab thickness 4.06mm.
Yes, it is EU RoHS compliant including Directive 2011/65/EU and Delegated Directive 2015/863/EU.
