| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Maximum Operating Temperature | |
| Maximum Operating Voltage | |
| Maximum Pressure | |
| Minimum Operating Temperature | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Operating Voltage | |
| Output | |
| Output Type | |
| Port Style | |
| Pressure Type | |
| Tape & Reel | |
| Termination Style | |
| Unit Weight | |
| Voltage |

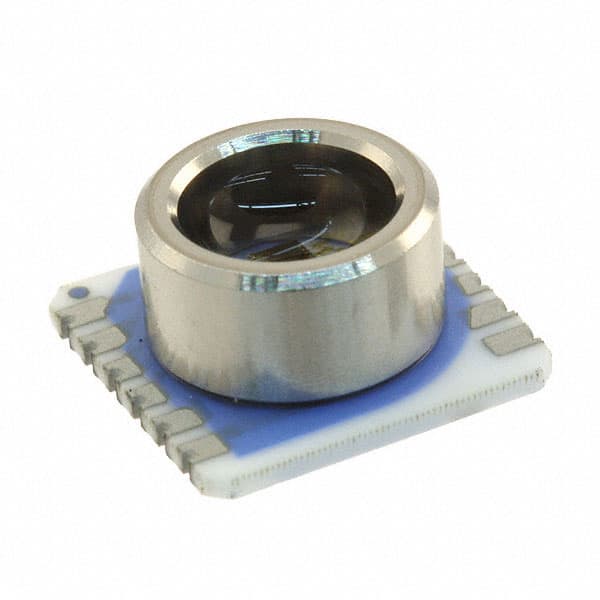

This TE Connectivity 325534009-00 is an absolute pressure sensor with a part number of 325534009-00. It is designed for board mount applications and utilizes an SPI interface for communication. The sensor measures pressure in the range of 0.15 PSI to 15.95 PSI (1kPa to 110kPa) and has a maximum pressure rating of 145.04 PSI (1000kPa).
With an operating voltage range of 2.2V to 3.6V and a maximum supply voltage of 3V, this sensor is suitable for various electronic systems. It provides a 16-bit output resolution, ensuring precise measurements. The operating temperature range is from -40°C to 125°C, making it robust for demanding environments. The sensor comes in an 8-SMD Module package with an SMD (SMT) Tab termination style, facilitating surface mounting.
The MS5534C series sensor offers an accuracy of 1.5 mbar. It is RoHS3 compliant and REACH unaffected. The unit weight is approximately 2.742057 oz.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 0.15 PSI to 15.95 PSI (1kPa to 110kPa).
The maximum pressure is 145.04 PSI (1000kPa).
The supply voltage range is 2.2V to 3.6V.
The sensor provides a 16-bit output resolution.
The operating temperature range is -40°C to 125°C.
The sensor is in an 8-SMD Module package.
The sensor is designed for surface mounting.
