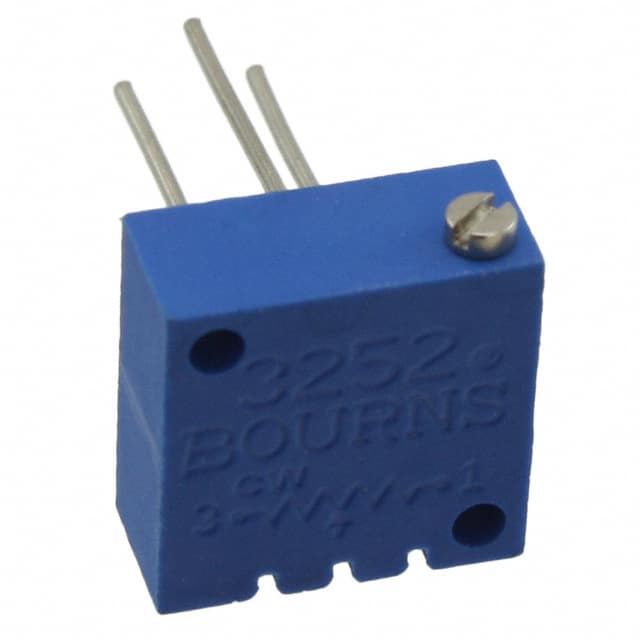

3252P-1-500 The Bourns 3252P-1-500 is a Cermet trimmer potentiometer offering 50 Ohms of resistance with a ±10% tolerance. It is designed for PC pin mounting and rated for 0.75W power.
Mfr Part #:

3252P-1-500

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 3252P-1-500 is a Cermet trimmer potentiometer offering 50 Ohms of resistance with a ±10% tolerance. It is designed for PC pin mounting and rated for 0.75W power.
✓ Total Stock: 75 pcs
$ Price Range: $0.05

3252P-1-500 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request 1130 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3252P-1-500 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Insulation Resistance
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Resolution
Storage Temperature
Tape & Reel
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
Torque
Weight
View Similar Products (0)

3252P-1-500 Description

Short technical summary and product information.

This Bourns 3252P-1-500 is a 1/2 inch square trimming potentiometer featuring a Cermet resistive element and 25 turns for precise adjustment. It offers a standard resistance of 50 Ohms with a tolerance of ±10% and a power rating of 0.75W at 85°C.



The potentiometer is sealed and suitable for various environmental conditions, with a wide operating temperature range from -65°C to +150°C. It features PC pin termination for easy integration into circuit boards and a side adjustment type.



Designed for reliability, it has a rotational life of 200 cycles and meets stringent environmental testing standards including vibration and shock resistance. The device is compliant with RoHS3 standards and has an MSL of 1.



Key specifications include infinite resolution, 1,000 megohms minimum insulation resistance, and a dielectric strength of 1,000 VAC at sea level. The physical dimensions are 0.500" x 0.220" face, making it suitable for applications requiring compact components.

3252P-1-500 Quick Information

Product Type: Trimmer Potentiometer
Canonical Name: Bourns 3252P-1-500 Trimming Potentiometer
Subcategory: Trimmer Potentiometer

3252P-1-500 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3252P-1-500 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3252P-1-500 Features

  • Multiturn Cermet sealed trimmer potentiometer.
  • Standard resistance of 50 Ohms with ±10% tolerance.
  • Rated for 0.75W power at 85°C.
  • PC pin termination for circuit board mounting.
  • Wide operating temperature range of -65°C to +150°C.

3252P-1-500 Applications

  • Ideal for precise circuit adjustments.
  • Suitable for automated assembly processes.
  • Used in control and calibration circuits.
  • Reliable performance in harsh environments.
  • Compact design for space-constrained applications.

3252P-1-500 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Bourns 3252P-1-500?

The standard resistance value for the Bourns 3252P-1-500 is 50 Ohms.

What is the tolerance of the Bourns 3252P-1-500 trimmer potentiometer?

The tolerance for the Bourns 3252P-1-500 is ±10%.

What is the power rating of the 3252P-1-500 at 85°C?

The power rating for the 3252P-1-500 at 85°C is 0.75W.

What is the temperature coefficient of this trimmer potentiometer?

The temperature coefficient is ±100 PPM/°C.

How many turns does the Bourns 3252P-1-500 have?

The Bourns 3252P-1-500 has 25 turns.

What type of termination style does the 3252P-1-500 use?

The 3252P-1-500 uses solderable printed circuit pins for termination.

What is the operating temperature range for the 3252P-1-500?

The operating temperature range is -65°C to +150°C.
