| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
144 pcs
|
144 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Alternate Mounting Hole Diameter | |
| Board Thickness | |
| Body Diameter | |
| Body Length | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Country of Origin | |
| Flange Diameter | |
| Flange Length | |
| Head Diameter | |
| Head Type | |
| Hole Depth | |
| Hole Type | |
| Insulation | |
| Lead Style | |
| Length | |
| Maximum Current | |
| Mounting Feature | |
| Mounting Hole Diameter | |
| Mounting Hole Type | |
| Mounting Type | |
| Operating Temperature Range | |
| Overall Length | |
| Prop 65 | |
| Static Sensitive | |
| Tail Diameter | |
| Tail Length | |
| Tail Type | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Termination Style |

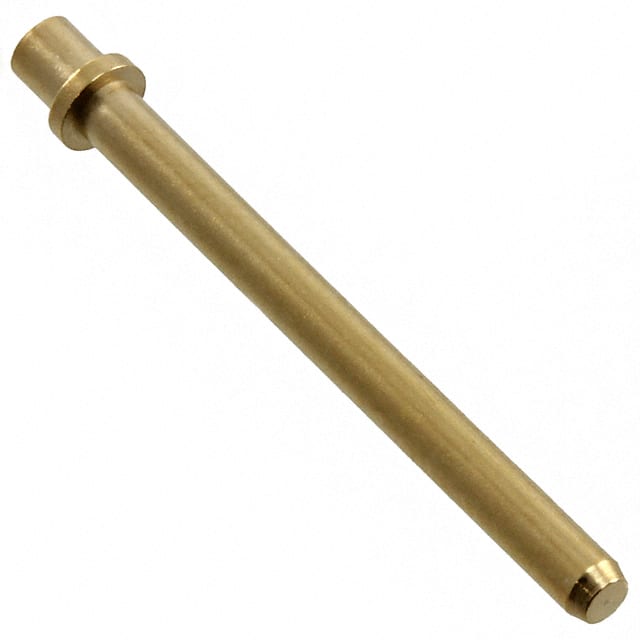

The Mill-Max 3233-2-00-15-00-00-08-0 is a printed circuit board (PCB) pin with a gold-plated brass alloy contact. The pin has a body diameter of 0.080" (2.032mm) and an overall length of 1.019" (25.883mm). It features a swage mount for secure installation into plated through holes, with a recommended mounting hole diameter of 0.094" (2.388mm) and an alternate hole diameter of 0.084" (2.134mm).
The operating temperature range is -55°C to +125°C, making it suitable for a wide variety of environments. The contact finish is 10 µ" gold over nickel, ensuring reliable connectivity and corrosion resistance. The pin is non-insulated and comes in bulk packaging.
This component is designed for through-hole soldering with a solder tail termination. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The part is manufactured in the USA and is active with no scheduled obsolescence.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.70 | $1.70 |
| 10+ | $1.45 | $1.45 |
| 25+ | $1.35 | $1.35 |
| 50+ | $1.29 | $1.29 |
| 100+ | $1.23 | $1.23 |
| 250+ | $1.15 | $1.15 |
| 500+ | $1.10 | $1.10 |
| 1,000+ | $1.04 | $1.04 |
| 2,500+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mounting type is through hole with a swage mount feature.
The contact finish is gold with a thickness of 10 µ" (0.25µm) over nickel.
The operating temperature range is -55°C to +125°C.
The overall length is 25.883mm (1.019").
The body diameter is 2.032mm (0.080").
The packaging is bulk.
Yes, it is RoHS3 compliant per the datasheet.
