| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Industrial Grade | |
| Insulation | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

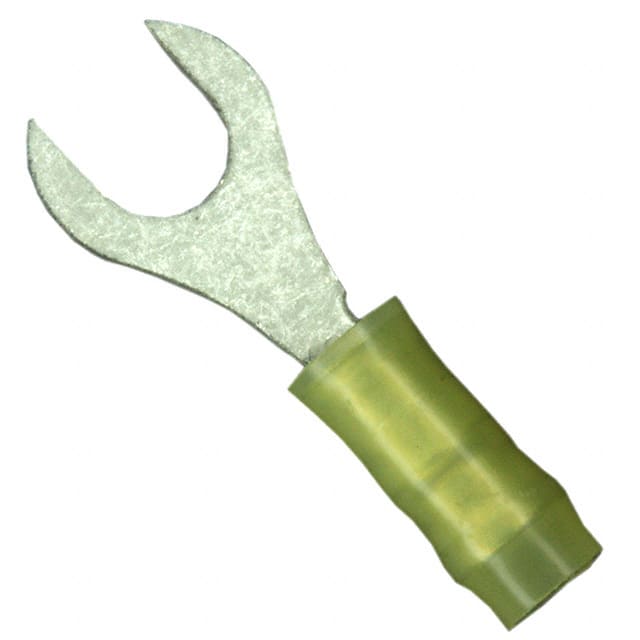

The TE Connectivity 323011 is a slotted ring terminal designed for wire gauges 22 to 26 AWG. It accommodates a #6 stud size and uses crimp termination for secure connections. The terminal is insulated with a yellow color code indicating the wire range. The contact is made of copper with a tin plating, and the terminal features a serrated inner barrel for improved grip after crimping. With a length of 18.26mm, width of 6.35mm, and material thickness of 0.46mm, it is suited for free-hanging (in-line) mounting in wiring harnesses and control panels. The insulation provides protection against accidental shorts, making it appropriate for low-voltage signal and power distribution applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.87 | $0.87 |
| 10+ | $0.74 | $0.74 |
| 25+ | $0.69 | $0.69 |
| 50+ | $0.66 | $0.66 |
| 100+ | $0.63 | $0.63 |
| 250+ | $0.59 | $0.59 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.53 | $0.53 |
| 3,000+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports 22-26 AWG wire.
It is designed for a #6 stud.
It is free hanging (in-line) mount.
Yes, it is insulated.
The contact finish is tin.
The length is 18.26 mm (0.719 inches).
