| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Width | |
| Wire Gauge |

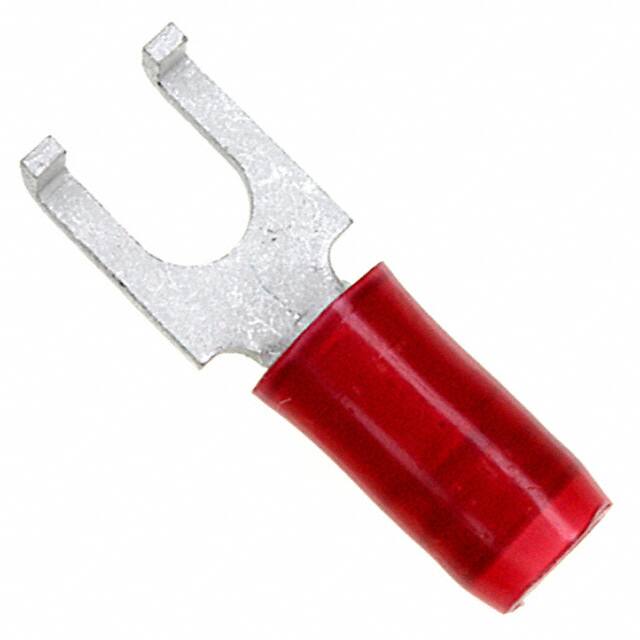

The TE Connectivity 322777 is an insulated spade terminal designed for wire ranges 16-22 AWG. It accommodates a #6 stud size and features a red insulation color indicating the wire gauge range. The terminal uses a flanged spade design with a serrated termination for secure crimping.
The terminal is constructed with a tin-plated copper contact for good conductivity and corrosion resistance. It is free-hanging (in-line) mount type with a crimp termination. Dimensions: width 6.35mm (0.250"), length 19.51mm (0.768").
Ideal for applications requiring reliable wire-to-stud connections. The serrated inner barrel enhances pull-out strength and electrical contact. Insulation provides protection against short circuits. Commonly used in automotive, industrial, and electrical panels.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.84 | $0.84 |
| 10+ | $0.71 | $0.71 |
| 25+ | $0.67 | $0.67 |
| 50+ | $0.64 | $0.64 |
| 100+ | $0.61 | $0.61 |
| 250+ | $0.57 | $0.57 |
| 500+ | $0.54 | $0.54 |
| 1,000+ | $0.51 | $0.51 |
| 3,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free Hanging (In-Line).
16-22 AWG.
#6 stud.
Crimp.
Yes, it is insulated with red color.
Copper with tin plating.
Width 6.35mm (0.250"), length 19.51mm (0.768").
