| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
259 pcs
|
259 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
149 pcs
|
149 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

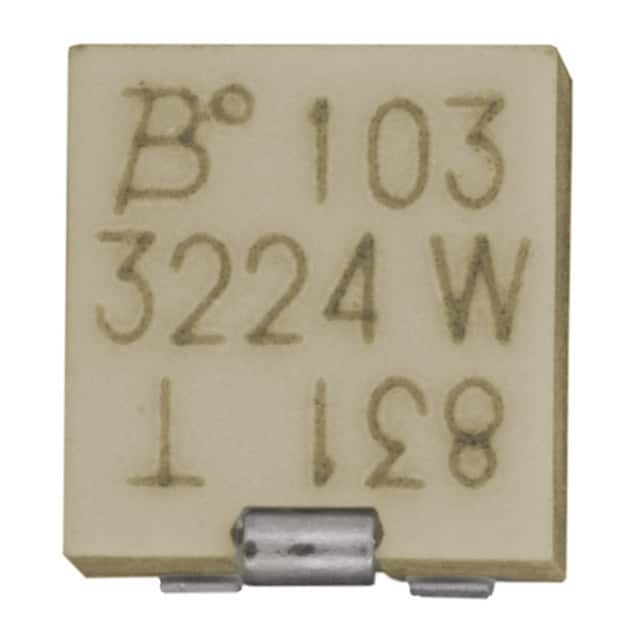

The Bourns 3224W-1-504E is a sealed trimmer potentiometer from the Trimpot® 3224 series. It offers a resistance value of 500 kOhms with a tolerance of ±10% and a power rating of 0.25W (1/4W).
This component is designed for top adjustment and features a cermet resistive material. It has 12 turns and a temperature coefficient of ±100ppm/°C. The mounting type is surface mount with a J lead termination style. The physical dimensions of the component face are Rectangular - 0.189" x 0.138" (4.80mm x 3.50mm).
The 3224W-1-504E is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is supplied in tape and reel or cut tape packaging with a standard package quantity of 250 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 500 kOhms.
The power rating is 0.25W, or 1/4W.
The tolerance is ±10%.
The temperature coefficient is ±100ppm/°C.
It has 12 turns.
It offers top adjustment.
The mounting type is surface mount.
