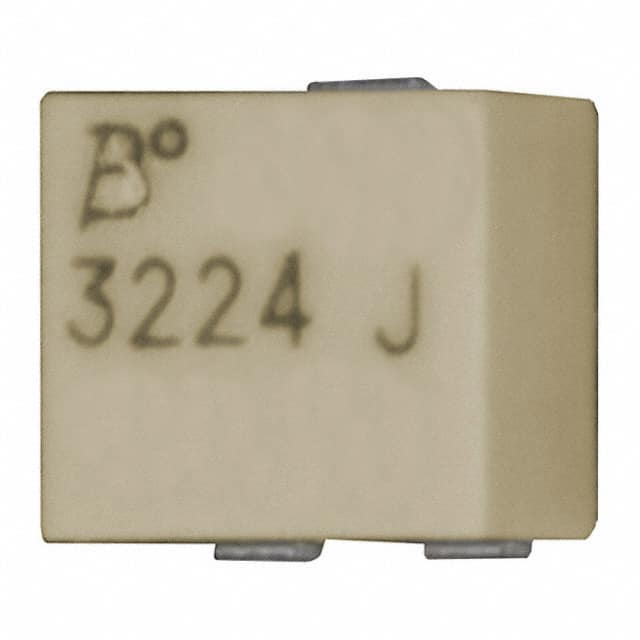

3224J-1-102E The Bourns 3224J-1-102E is a 1 kΩ Cermet trimmer resistor designed for surface mount applications. It offers a 0.25W power rating and ±10% tolerance.
Mfr Part #:

3224J-1-102E

Available from 4 distributors
Mfr Name: Bourns
Bourns
The Bourns 3224J-1-102E is a 1 kΩ Cermet trimmer resistor designed for surface mount applications. It offers a 0.25W power rating and ±10% tolerance.
✓ Total Stock: 52,063 pcs
$ Price Range: $0.05

3224J-1-102E Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3224J-1-102E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Height
Lead Style
Length
Mounting Type
Number of Turns
Operating Temperature Range
Power (Watts)
Resistance
Resistive Material
Temperature Coefficient
Termination Style
Tolerance
Width
View Similar Products (0)

3224J-1-102E Description

Short technical summary and product information.

The Bourns 3224J-1-102E is a surface-mount trimmer resistor from the 3224 series. It features a cermet resistive element with a resistance value of 1 kΩ and a tolerance of ±10%. This component is rated for 0.25W (1/4W) power dissipation and has 12 turns for precise adjustment via a side slot.



The trimmer resistor operates within a temperature range of -65°C to +150°C. Its mechanical dimensions are rectangular, measuring 4.60mm x 3.50mm on the face, with a height of 3.71mm, length of 4.8mm, and width of 4.6mm. The termination style is J Lead, suitable for PCB mounting.



This part is classified under Trimmer Resistors - SMD and is packaged in cut tape. The factory pack quantity is 500 units. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

3224J-1-102E Quick Information

Product Type: Trimmer Resistor
Series: 3224
Canonical Name: Bourns 3224J-1-102E Cermet Trimmer Resistor
Subcategory: Trimmer Resistors - SMD

3224J-1-102E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3224J-1-102E Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3224J-1-102E Features

  • 1 kΩ resistance with ±10% tolerance.
  • 0.25W power rating.
  • Cermet resistive element.
  • 12-turn adjustment for precision.
  • Surface mount with J-lead termination.

3224J-1-102E Applications

  • Ideal for adjustable voltage regulation.
  • Suitable for calibration circuits.
  • Used in electronic test equipment.
  • Component in control systems.

3224J-1-102E FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3224J-1-102E trimmer resistor?

The resistance of the Bourns 3224J-1-102E trimmer resistor is 1 kΩ.

What is the power rating for the 3224J-1-102E trimmer resistor?

The power rating for the 3224J-1-102E trimmer resistor is 0.25W.

What is the tolerance of the Bourns 3224J-1-102E trimmer resistor?

The tolerance of the Bourns 3224J-1-102E trimmer resistor is ±10%.

What is the operating temperature range for this trimmer resistor?

The operating temperature range for this trimmer resistor is -65°C to +150°C.

What type of material is used for the resistive element?

The resistive element is made of Cermet.

How is the Bourns 3224J-1-102E mounted?

This trimmer resistor is designed for surface mounting.
