| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

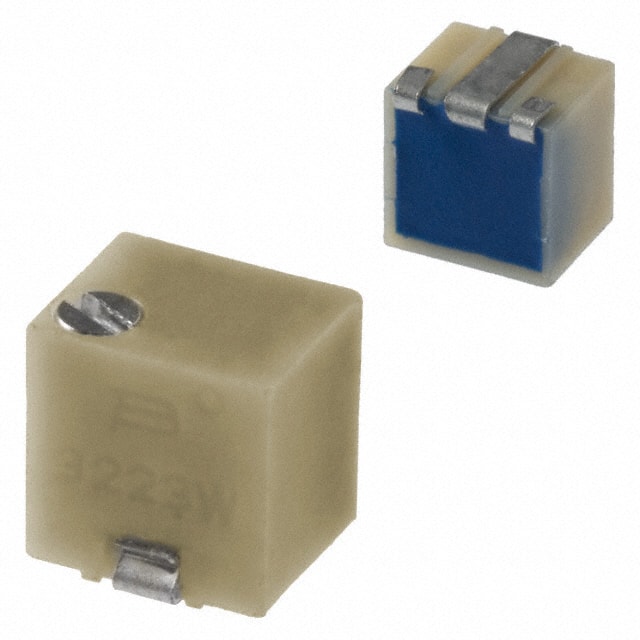

The Bourns 3223W-1-103E is a 3 mm SMD Trimpot trimming potentiometer. It features a cermet resistive element with a resistance value of 10 kΩ and a tolerance of ±20%. This industrial, sealed potentiometer is designed for surface mounting with a J lead termination style.
With 11 turns for adjustment, it offers essentially infinite resolution. The power rating is 0.125W at 70°C, and it operates within a temperature range of -65°C to +150°C. The unit is sealed to withstand standard board wash processing and has a pick and place centering design for automated placement compatibility.
Key electrical characteristics include an insulation resistance of 100 megohms min. at 500 VDC and a dielectric strength of 600 VAC. Mechanical specifications include a maximum torque of 2.50 oz-in. The size is rectangular, measuring 0.154" x 0.125" face (3.90mm x 3.18mm). It meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint requirements and supports both top and side adjustment.
Environmental characteristics include compliance with RoHS3 standards and an MSL rating of 1. The device is designed for reliability in industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 kΩ.
The tolerance is ±20%.
The power rating is 0.125W at 70°C.
The temperature coefficient is ±100 ppm/°C.
It has 11 turns for adjustment.
It requires surface mounting.
The resistive material is Cermet.
