| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

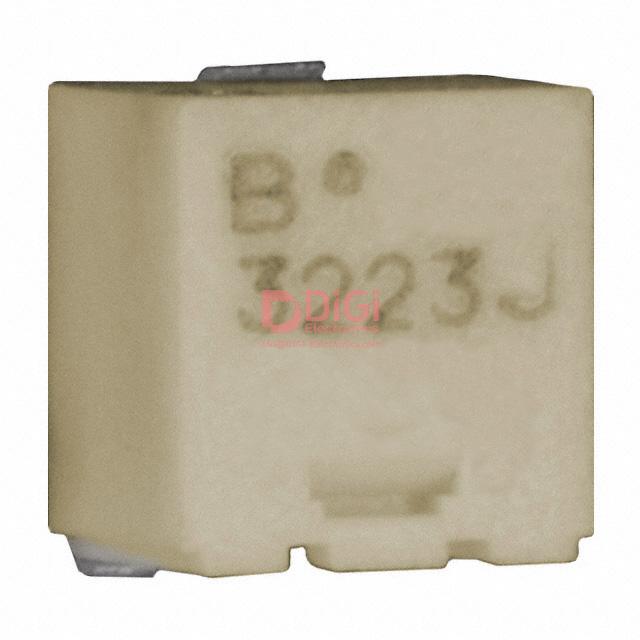

The Bourns 3223J-1-202E is a 3 mm square, multiturn, sealed cermet trimming potentiometer. It is designed for surface mount applications and is compatible with automated placement due to its pick and place centering design and flush adjustment screw. This model offers a resistance of 2 kΩ with a standard tolerance of ±20% and a power rating of 0.125W (1/8W) at 70°C.
The potentiometer has 11 adjustment turns and features J lead termination for surface mounting. Its sealed construction allows it to withstand standard board wash processing. The operating temperature range is from -65°C to +150°C, with a temperature coefficient of ±100 ppm/°C.
Key electrical characteristics include an insulation resistance of 100 megohms minimum and a dielectric strength of 600 VAC. The physical dimensions are a rectangular face of 0.154" x 0.125" (3.90mm x 3.18mm). This series meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint requirements and is available in top and side adjust configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Bourns 3223J-1-202E trimmer potentiometer is 2 kΩ.
The power rating is 0.125W (1/8W) at 70°C.
The temperature coefficient is ±100 ppm/°C.
The 3223J-1-202E is a surface mount device.
It has 11 turns.
