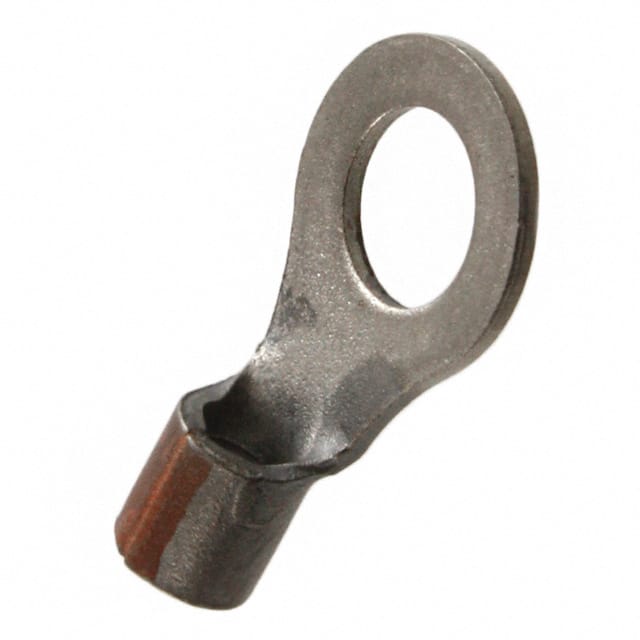

322335 Ring terminal from TE Connectivity for 14-16 AWG wire, #10 stud size, non-insulated with crimp termination.
Mfr Part #:

322335

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Ring terminal from TE Connectivity for 14-16 AWG wire, #10 stud size, non-insulated with crimp termination.
✓ Total Stock: 10 pcs
$ Price Range: $1.40 - $2.35

322335 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

322335 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Features
Insulation
Lead Style
Length
Mounting Type
Stud
Terminal Type
Termination
Termination Style
Thickness
Width
Wire Gauge
View Similar Products (0)

322335 Description

Short technical summary and product information.

This TE Connectivity 322335 is a non-insulated ring terminal designed for 14-16 AWG wire and a #10 stud size. It features a crimp termination method and a nickel contact material, ensuring reliable electrical connections. The terminal has a thickness of 0.76mm, width of 8.71mm, and length of 16.15mm, and is colored orange for easy identification. It includes a brazed seam for high-temperature applications, serrated termination for secure grip, and is designed for free hanging (in-line) mounting. Suitable for general-purpose wire termination where a durable, non-insulated ring connector is required.

322335 Quick Information

Product Type: Ring Connector
Canonical Name: TE Connectivity 322335 Ring Terminal, 14-16 AWG, #10 Stud, Non-Insulated, Crimp
Subcategory: Ring Connectors

322335 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

322335 Estimated Pricing

Qty Low High
1+ $2.35 $2.35
10+ $2.00 $2.00
25+ $1.87 $1.87
50+ $1.78 $1.78
100+ $1.70 $1.70
250+ $1.59 $1.59
500+ $1.52 $1.52
1,000+ $1.44 $1.44
3,000+ $1.40 $1.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

322335 Features

  • Non-insulated ring terminal for 14-16 AWG.
  • Crimps onto #10 stud size terminals.
  • Nickel contact material for durability.
  • Brazed seam for high-temperature use.
  • Serrated termination for secure grip.

322335 Applications

  • Used in automotive wire harnesses.
  • Suitable for high-temperature environments.
  • Ideal for power distribution connections.
  • Common in industrial control panels.

322335 FAQs

6 frequently asked questions generated from this part’s specifications.
What wire gauge is this ring terminal for?

This ring terminal is designed for 14-16 AWG wire.

What stud size does it fit?

It fits a #10 stud size.

Is this ring terminal insulated?

No, it is non-insulated.

What termination method does it use?

It uses crimp termination.

What are the dimensions of this ring terminal?

Length is 16.15mm, width is 8.71mm, and thickness is 0.76mm.

What special features does this terminal have?

It features a brazed seam, high-temperature rating, and serrated termination.
