3220-10-0300-00
CNC Tech
CONN HEADER SMD 10POS 1.27MM. Rated 1A, -40°C to 105°C operating temperature.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,212 pcs
|
1212 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

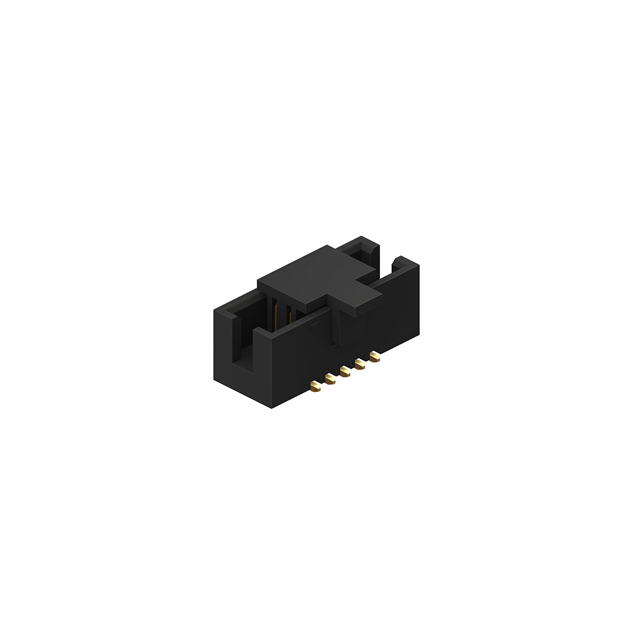

The CNC Tech 3221-10-0300-00-TR is a 10-position, 2-row, 1.27mm pitch surface mount header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a push-pull fastening type and a keying slot for proper alignment. The header uses male pin contacts made of brass with a gold flash finish. The insulation material is Polyamide (PA6T), Nylon 6T, with a flammability rating of UL94 V-0. The insulation height is 5.40mm. This connector is rated for a current of 1A and operates over a temperature range of -40°C to 105°C. It is terminated via solder and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.04 | $1.04 |
| 10+ | $0.88 | $0.88 |
| 100+ | $0.75 | $0.75 |
| 700+ | $0.64 | $0.64 |
| 1,400+ | $0.61 | $0.61 |
| 2,100+ | $0.59 | $0.59 |
| 3,500+ | $0.57 | $0.57 |
| 4,900+ | $0.56 | $0.56 |
| 7,000+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 10 positions, all loaded, in 2 rows.
The pitch is 1.27mm (0.050").
The current rating is 1A.
This header uses surface mount (SMD) with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is gold flash on brass contacts.
