| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Gender | |
| Insertion Force | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination |

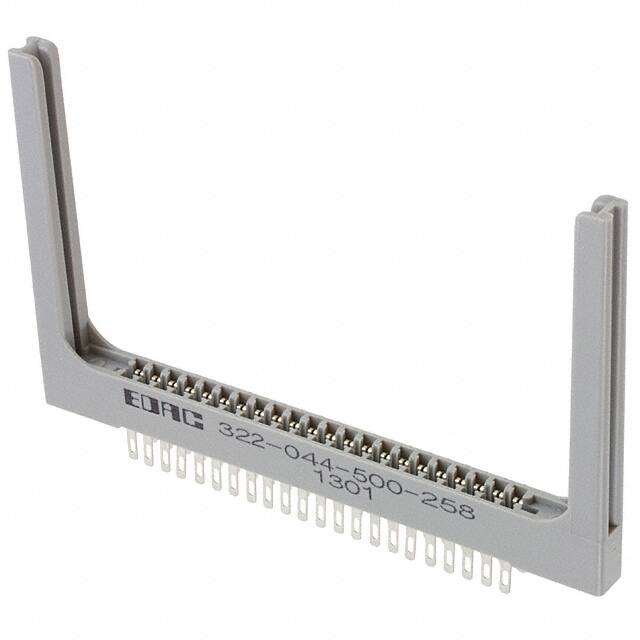

The Edac 322-044-500-258 is a dual readout card edge connector from the 322 series. It has 22 positions (44 total contacts) arranged in 2 rows with a pitch of 0.156" (3.96mm) and row spacing of 0.200" (5.08mm). The connector accepts PC boards with a nominal thickness of 0.062" (1.57mm) and features semi-bellows contacts made of copper alloy with gold plating on the mating area and tin plating on the tails. The insulator is made of grey polycarbonate, glass reinforced. The connector is rated for 5 amps current, with a maximum contact resistance of 10 mΩ, dielectric withstanding voltage of 1800V AC rms, and minimum insulation resistance of 5000 MΩ. Operating temperature range is -40°C to 105°C. Mounting is through hole with solder eyelet termination. The flange feature includes flush mount, top opening, threaded insert 4-40. Color is gray. The connector includes card guides. It is RoHS compliant (unverified). This connector is suitable for PCB edge card applications requiring reliable connections in industrial and commercial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $33.06 | $33.06 |
| 10+ | $28.09 | $28.09 |
| 25+ | $26.34 | $26.34 |
| 50+ | $25.08 | $25.08 |
| 100+ | $23.88 | $23.88 |
| 250+ | $22.39 | $22.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 22 positions (44 contacts total) arranged in 2 rows.
The pitch is 3.96mm (0.156").
5 amps per contact.
Through hole with solder eyelet termination.
Copper alloy with gold plating on mating area and tin on tails.
-40°C to 105°C.
0.054" to 0.070" (1.37mm to 1.78mm), nominal 0.062".
