| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Inside Diameter | |
| Compatible Wire Type | |
| Contact Base Material | |
| Features | |
| Government Qualified Splice | |
| Halogen Free | |
| Insulation | |
| Material Thickness | |
| Military Grade | |
| Number of Serrations | |
| Number of Wire Entries | |
| Operating Temperature Range | |
| Outside Diameter | |
| Packaging Method | |
| Packaging Quantity | |
| Product Length | |
| Product Weight | |
| Terminal Plating Material | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

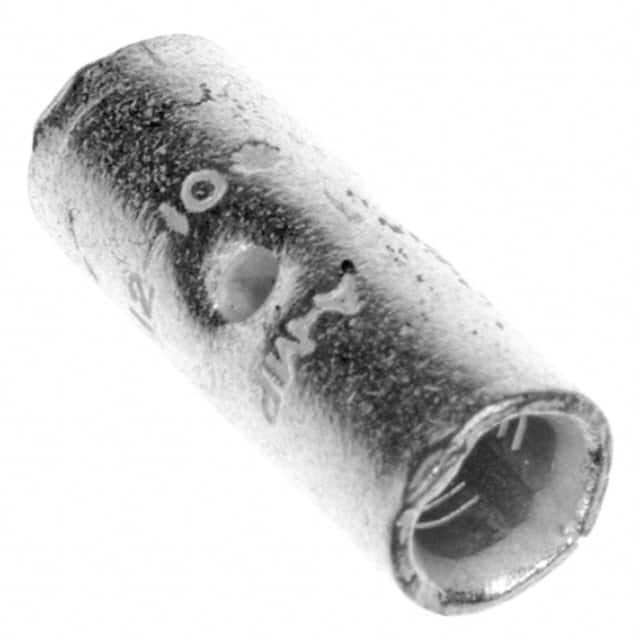

This TE Connectivity 32151 is a butt splice connector designed for splicing two wires of 12-10 AWG (2.62-6.64 mm²) gauge. It accommodates both solid and stranded copper wire and uses a crimp termination method. The splice is non-insulated and features a serrated mating area to ensure secure mechanical and electrical connections. The barrel has an inside diameter of 3.28 mm and an outside diameter of 5.74 mm, with a material thickness of 0.99 mm. The overall length is 14.35 mm.
The connector is constructed from copper with a tin plating, providing good conductivity and corrosion resistance. It is rated for continuous operation up to 170°C. The splice includes six serrations for enhanced grip on the wire. It is not sealable and does not include wire insulation support.
Compliance includes EU RoHS Directive 2011/65/EU and REACH. The part is halogen-free (low halogen) and free of BFR/CFR/PVC. Packaging is loose piece, 500 units per pack. The splice is not government qualified.
12-10 AWG (2.62-6.64 mm²).
Butt splice, inline, individual openings.
No, it is non-insulated.
170°C.
Copper contact with tin plating.
500 pieces per pack, loose piece.
Yes, EU RoHS Directive 2011/65/EU compliant.
