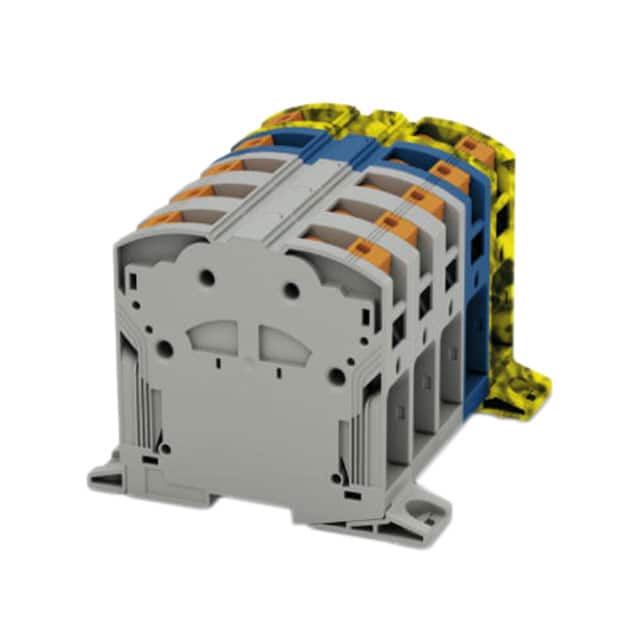

3215034 The Phoenix Contact 3215034 is a high-current terminal block with Power-Turn connection, rated for 150 mm² conductors, 309 A, and 1500 V. It features 4 positions and a compact 31 mm width for Din Rail mounting.
Mfr Part #:

3215034

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact 3215034 is a high-current terminal block with Power-Turn connection, rated for 150 mm² conductors, 309 A, and 1500 V. It features 4 positions and a compact 31 mm width for Din Rail mounting.
✓ Total Stock: 1 pcs

3215034 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3215034 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connection Method
Current
Height
Hole Diameter
Industrial Grade
Length
Mounting Type
Number of Levels
Number of Positions
Rated Current
Terminal
Termination Style
Type
Voltage
Weight
Width
Wire Gauge or Range
View Similar Products (0)

3215034 Description

Short technical summary and product information.

The Phoenix Contact 3215034 is a high-current terminal block from the PTPOWER series, designed for demanding power distribution applications. It features a Power-Turn connection method that enables secure and efficient termination of large conductors ranging from 50 mm² to 150 mm² (AWG 1/0 to 300 kcmil). With a rated current of 309 A and a nominal voltage of 1500 V, this block is suitable for high-power DC and AC circuits.



The terminal block is constructed with a gray/blue PA insulating material rated UL 94 V0 for flammability resistance. It supports an overvoltage category III with a pollution degree of 3 and an insulating material group I. The compact design measures 31 mm wide, 150 mm long, and 108.3 mm high, with a 6.5 mm hole diameter and 137.2 mm drill hole spacing for mounting.



This component is ideal for control panels, switchgear, and industrial automation where high current capacity and reliable wire management are required. It is supplied as a single piece and weighs approximately 1380 g.

3215034 Quick Information

Product Type: High-Current Terminal Block
Series: PTPOWER 150-3L/N-F
Canonical Name: Phoenix Contact PTPOWER 150-3L/N-F High-Current Terminal Block
Subcategory: High-Current Terminal Block

3215034 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3215034 Features

  • Rated for 309 A continuous current.
  • Supports 1500 V nominal voltage.
  • Power-Turn connection for large conductors.
  • UL 94 V0 flammability rated PA housing.
  • Compact 31 mm width saves space.

3215034 Applications

  • Ideal for power distribution in industrial control panels.
  • Used in high-current DC applications up to 1500 V.
  • Suitable for large conductor termination (50-150 mm²).
  • Common in switchgear and automation systems.

3215034 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 3215034 terminal block have?

4 positions.

What is the current rating?

309 A (nominal current).

What is the voltage rating?

1500 V nominal, rated surge voltage 8 kV.

What mounting type is used?

ct screw connection (Din Rail compatible).

What wire sizes can it accept?

Conductor cross section 50 mm² to 150 mm² (solid or flexible), AWG 1/0 to 300 kcmil.

What is the insulation material and flammability rating?

Insulating material is PA (polyamide) with UL 94 V0 rating.

How many connections does it have?

8 connections (4 positions, each 2 connections).
