| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Halogen Free | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Temperature Range | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

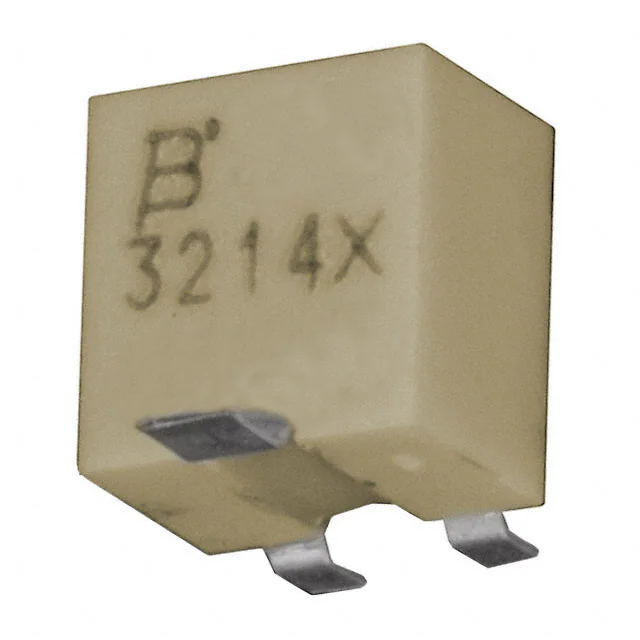

The Bourns 3214X-1-204E is a sealed, surface mount trimmer potentiometer from the Trimpot 3214 series. It offers a resistance value of 200 kΩ with a standard tolerance of ±10% and a power rating of 0.25W at 85°C.
This multiturn cermet potentiometer has 5 adjustment turns and a top adjustment type. The termination style is Gull Wing, suitable for surface mounting applications. It is designed to withstand board wash processing and meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint requirements.
Environmental specifications include a wide operating temperature range of -65°C to +150°C and a temperature coefficient of ±100 ppm/°C. The component is also halogen-free and meets moisture sensitivity level 1 requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3214X-1-204E trimmer potentiometer has a resistance value of 200 kΩ.
The power rating is 0.25W at 85°C and 0W at 150°C.
The tolerance is ±10%.
The temperature coefficient is ±100 ppm/°C.
The adjustment mechanism has 5 turns.
The 3214X-1-204E requires surface mounting.
The moisture sensitivity level is 1.
