| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Height | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| SVHC Present | |
| Static Pressure | |
| Termination | |
| Termination Style | |
| Voltage | |
| Width |

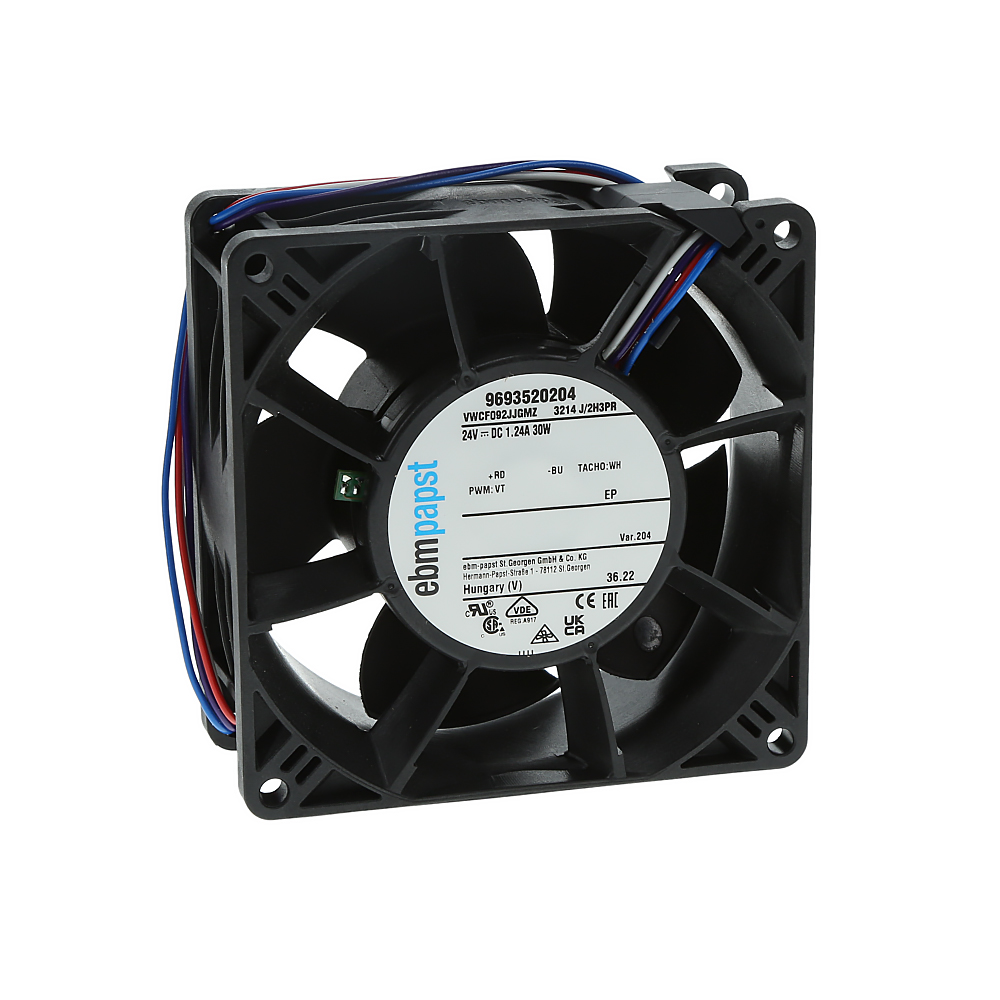

The Ebm-Papst 3214J/2H3 is a 92 mm square tubeaxial fan with a 38 mm thickness, designed for cooling applications requiring high airflow and static pressure. It operates at 24 VDC nominal voltage, consuming 30 W of power. The fan delivers 140.2 CFM (3.93 m³/min) of airflow and generates 645.0 Pa of static pressure, making it suitable for systems with moderate impedance.
This fan uses a ball bearing system for extended service life and operates at 11000 RPM with a noise level of 69 dB(A). It includes features such as auto restart and a speed sensor (tachometer) output for monitoring rotation speed. The termination is via 3 wire leads, providing power, ground, and tachometer signal.
The operating temperature range is -20 to 70°C, allowing use in various environments. The fan holds approvals from CCC, CSA, CE, EAC, VDE, and UL, indicating compliance with international safety standards. RoHS3 and REACH compliance are listed but unverified.
| Qty | Low | High |
|---|---|---|
| 36+ | $103.11 | $103.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 VDC.
92 mm square by 38 mm thick.
-20 to 70°C.
The specification lists RoHS3 compliant, but this is unverified.
140.2 CFM.
Ball bearing.
Yes, it includes a speed sensor (tachometer) output.
