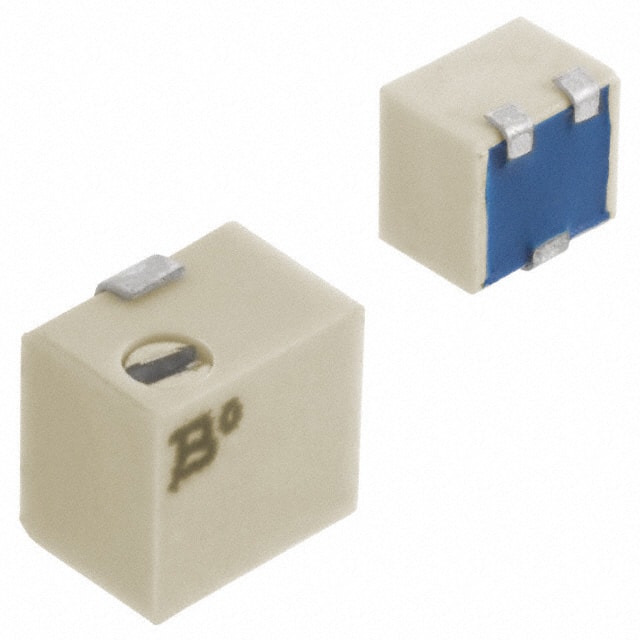

3214J-1-205E The Bourns 3214J-1-205E is a 5-turn cermet trimmer potentiometer designed for surface mounting. It features a 2 MΩ resistance and a 0.25W power rating.
Mfr Part #:

3214J-1-205E

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 3214J-1-205E is a 5-turn cermet trimmer potentiometer designed for surface mounting. It features a 2 MΩ resistance and a 0.25W power rating.
✓ Total Stock: 270 pcs
$ Price Range: $0.05

3214J-1-205E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
270 pcs
On Request
270 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3214J-1-205E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Halogen Free
Insulation Resistance
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Resolution
Storage Temperature
Tape & Reel
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
Torque
Weight
View Similar Products (0)

3214J-1-205E Description

Short technical summary and product information.

This Bourns 3214J-1-205E is a 5-turn trimming potentiometer from the 3214J series, utilizing a cermet resistive element. It is designed for surface mount applications with a J lead termination style.



The potentiometer offers a standard resistance of 2 MΩ with a tolerance of ±10%. It is rated for 0.25W of power at 85°C and operates within a temperature range of -65°C to +150°C. The adjustment angle is 5 turns, and it features a side adjustment type.



The 4mm square design meets industry standards for SMD trimmer footprints. It is sealed to withstand board wash processing and features a pick-and-place centering design with flush adjustment. The component is RoHS 3 compliant and has a Moisture Sensitivity Level (MSL) of 1.



Key electrical characteristics include an essentially infinite resolution, 100 MΩ minimum insulation resistance, and 600 VAC dielectric strength. Environmental testing includes humidity, vibration, shock, load life, and thermal shock resistance.

3214J-1-205E Quick Information

Product Type: Trimmer Potentiometer
Series: 3214J
Canonical Name: Bourns 3214J Series 5-Turn Cermet Trimming Potentiometer
Subcategory: Trimpot

3214J-1-205E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3214J-1-205E Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3214J-1-205E Features

  • 5-turn cermet trimmer potentiometer.
  • 2 MΩ resistance with ±10% tolerance.
  • 0.25W power rating at 85°C.
  • Surface mount with J lead termination.
  • Sealed for board wash processing.

3214J-1-205E Applications

  • Ideal for automated assembly processes.
  • Suitable for board wash environments.
  • Used in circuits requiring fine adjustment.
  • Industrial and general electronic applications.

3214J-1-205E FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the Bourns 3214J-1-205E trimmer potentiometer?

The Bourns 3214J-1-205E has a standard resistance of 2 MΩ.

What is the power rating for the 3214J-1-205E trimmer potentiometer?

The power rating is 0.25W at 85°C.

What is the temperature range for this trimmer potentiometer?

The operating temperature range is -65°C to +150°C.

How is the 3214J-1-205E trimmer potentiometer mounted?

It is a surface mount device with J lead termination.

What is the RoHS status of the Bourns 3214J-1-205E?

The Bourns 3214J-1-205E is RoHS 3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.
