| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | 1209 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Halogen Free | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Resolution | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

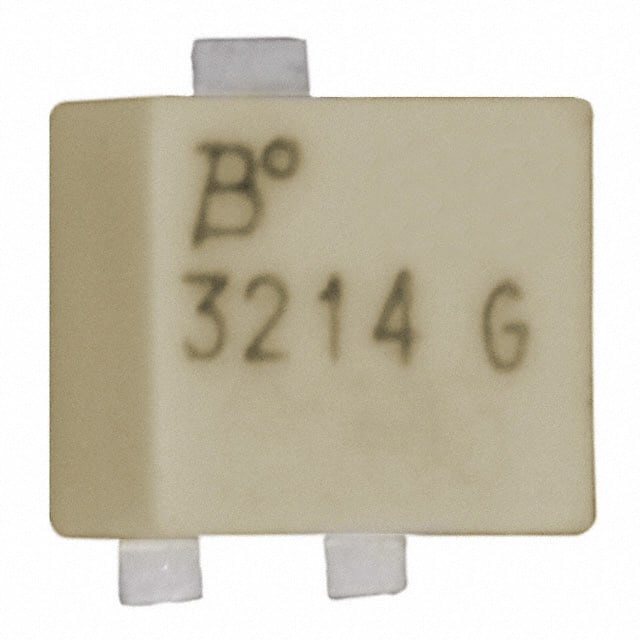

This Bourns 3214G-1-501E is a 5-turn cermet trimmer potentiometer designed for industrial applications. It offers a resistance range from 10 ohms to 2 megohms, with this specific unit rated at 500 Ohms and a tolerance of ±10%. The power rating is 0.25W at 85°C, with a temperature range of -65°C to +150°C.
Featuring a surface mount design with gull wing termination, this 4mm square trimmer meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint requirements. It is sealed to withstand board wash processing and has a pick-and-place centering design with flush adjustment. The adjustment angle is 5 turns nominal, and it has a maximum torque of 180 g-cm.
Environmental characteristics include a moisture sensitivity level of 1 and an ESD classification of 2. The component is RoHS compliant and halogen-free. It is suitable for applications requiring precise resistance adjustments in a compact surface-mount package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Bourns 3214G-1-501E is 500 Ohms.
The tolerance for the 3214G-1-501E is ±10%.
The power rating of the 3214G-1-501E is 0.25W at 85°C.
The operating temperature range is -65°C to +150°C.
The Bourns 3214G-1-501E uses surface mount.
The termination style is Gull Wing.
Yes, the Bourns 3214G-1-501E is halogen-free.
