| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

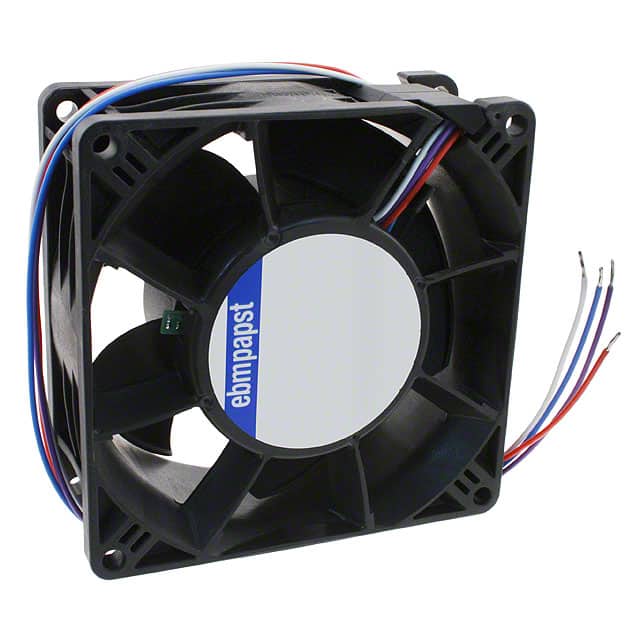

The Ebm-Papst 3212J/2H4P is a 12VDC tubeaxial fan from the 3200J Series, featuring a compact 92x38mm square frame. It delivers 165 CFM of airflow at 13000 RPM with a noise level of 73 dBA. The fan uses ball bearings for long life and reliability.
Electrically, the fan operates over a voltage range of 6 to 13.8 VDC and consumes 50 W of power. It includes PWM control input and a tachometer output for speed monitoring and regulation. The termination is 4 wire leads.
The fan is designed for forced air cooling in electronic enclosures, telecommunications equipment, and industrial systems. It is rated for operating temperatures from -20 to 70°C and carries approvals from CSA, UL, and VDE.
| Qty | Low | High |
|---|---|---|
| 1+ | $103.78 | $103.78 |
| 10+ | $92.60 | $92.60 |
| 25+ | $89.23 | $89.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fan operates from 6 to 13.8 VDC with a rated voltage of 12 VDC.
It delivers 165 CFM (4.62 m³/min) in free air.
The noise level is 73 dBA.
Yes, it has a PWM control input and a tachometer output.
The fan is rated for -20 to 70°C.
It uses ball bearings.
