| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Degree of Pollution | |
| Flammability Rating | |
| Height | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Maximum Load Current | |
| Mounting Type | |
| Nominal Cross Section | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category | |
| Packing Unit | |
| Rated Surge Voltage | |
| Terminal | |
| Terminal Width | |
| Termination Style | |
| Type | |
| UL 94 | |
| Voltage | |
| Weight per Piece | |
| Wire Gauge or Range |

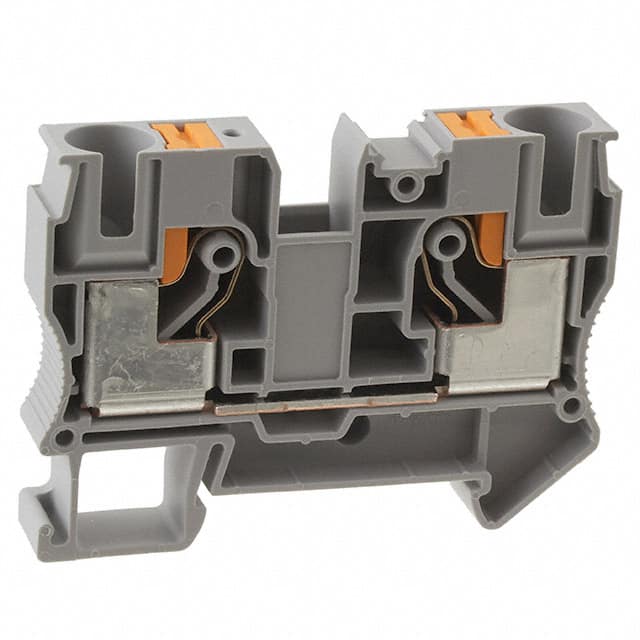

The Phoenix Contact PT 10 (3212120) is a feed-through terminal block designed for DIN rail mounting. It features a push-in connection method for tool-free wiring of solid or ferruled conductors. The terminal block accepts wire cross-sections from 0.5 mm² to 16 mm² (AWG 20 to 6) and is rated for 60 A continuous current and 600 V voltage.
Key electrical specifications include a rated surge voltage of 8 kV, overvoltage category III, and a degree of pollution of 3. The insulating material is polyamide (PA) with a V0 flammability rating per UL 94. The terminal block has a compact width of 10.2 mm and a height of 49.5 mm, making it suitable for space-constrained control cabinets.
The PT 10 mounts on NS 35/7.5 or NS 35/15 DIN rails. It includes a double function shaft for testing and an additional test connection. The product is tested for railway applications and is suitable for machine building and plant engineering environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.00 | $4.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The terminal block is rated for 60 A continuous current, with a maximum load current of 70 A when using a 16 mm² conductor.
The nominal voltage is 1000 V and the rated voltage is 600 V.
It accepts wire cross-sections from 0.5 mm² to 16 mm² (AWG 20 to 6).
It mounts on NS 35/7.5 or NS 35/15 DIN rails.
The insulating material is polyamide (PA) with a V0 flammability rating per UL 94.
