| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Method | |
| Country of Origin | |
| Current | |
| Custom Tariff Number | |
| Degree of Pollution | |
| Flammability Rating | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Maximum Load Current | |
| Mounting Type | |
| Nominal Cross Section | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category | |
| Rated Surge Voltage | |
| Shock Protection | |
| Short-time Current | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight per Piece | |
| Width | |
| Wire Gauge Range | |
| Wire Gauge or Range |

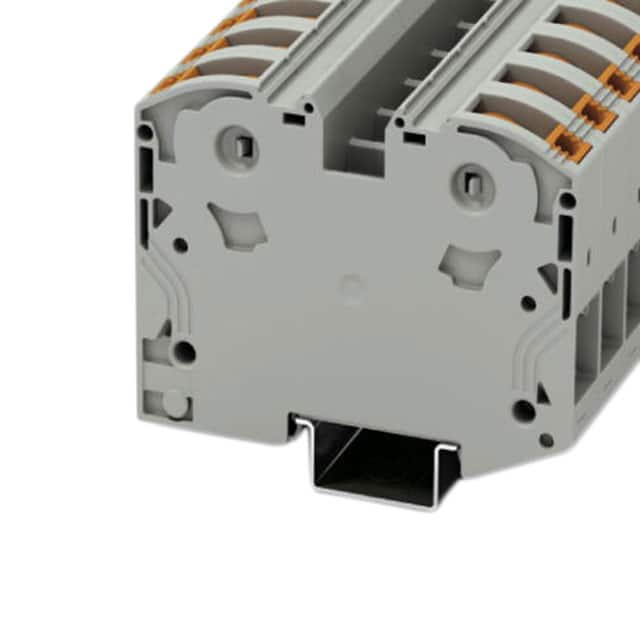

The Phoenix Contact PTPOWER 35 (part number 3212064) is a high-current terminal block designed for DIN rail mounting on NS 35/15 profile. It features a Power-Turn push-in connection that enables tool-free wiring of solid conductors and ferrules, accommodating wire cross sections from 2.5 mm² to 35 mm² (AWG 12-2).
The terminal block is rated for a nominal current of 125 A and nominal voltage of 1000 V, with a rated surge voltage of 8 kV. It is constructed with a gray polyamide (PA) insulating material rated UL 94 V0 for flammability. The design includes back-of-hand and finger shock protection per DIN EN 50274, and provides a test connection in the double function shaft. Short-time current withstand is 4.2 kA with a 35 mm² conductor. Each piece weighs 86.0 g and is manufactured in Poland.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.80 | $8.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 125 A with a 35 mm² conductor.
The nominal voltage rating is 1000 V, with a rated surge voltage of 8 kV.
It accepts wire cross sections from 2.5 mm² to 35 mm² (approximately AWG 12-2).
It mounts on NS 35/15 DIN rail.
The insulating material is polyamide (PA) with a UL 94 V0 flammability rating.
