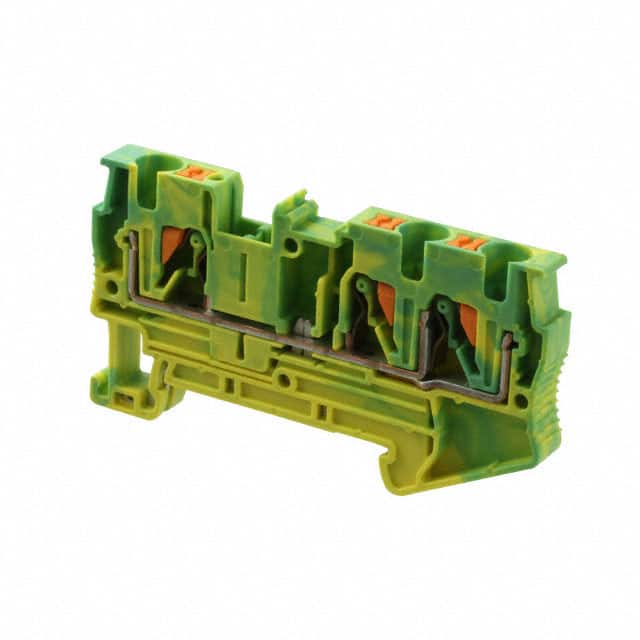

The Phoenix Contact PT 4-TWIN-PE (part number 3211780) is a ground modular terminal block designed for DIN rail mounting. It features a push-in connection method that enables tool-free wiring of solid conductors and conductors with ferrules.
Key specifications include a nominal cross section of 4 mm², a wire range of 0.2-4 mm² (AWG 24-10), and a width of 6.2 mm. The terminal block is rated for a surge voltage of 8 kV (overvoltage category III, pollution degree 3) and meets IEC 60947-7-2.
The housing is made of polyamide (PA) with a V0 flammability rating per UL 94. The green-yellow color indicates its ground/earth function. The unit weighs 12.8 g and is supplied in a packing unit of 1 piece with a minimum order quantity of 50 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.36 | $6.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Push-in connection.
0.2-4 mm² (AWG 24-10).
8 kV.
NS 35/7,5 and NS 35/15 DIN rail.
V0 according to UL 94.
3 positions.
Green-yellow.
