| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Assembly | |
| Color | |
| Connection Type | |
| Current | |
| Customs Tariff | |
| Disconnect Type | |
| EAN | |
| Height (Nominal @ NS 35/15) | |
| Height (Nominal @ NS 35/7.5) | |
| Inflammability Class UL 94 | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting | |
| Nominal Voltage | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Standard | |
| Standard Package Qty | |
| Stripping Length | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width | |
| Wire Gauge (AWG) (Minimum/Maximum) | |
| Wire Gauge (Solid) (Minimum/Maximum) | |
| Wire Gauge (Stranded) (Minimum/Maximum) | |
| Wire Gauge or Range |

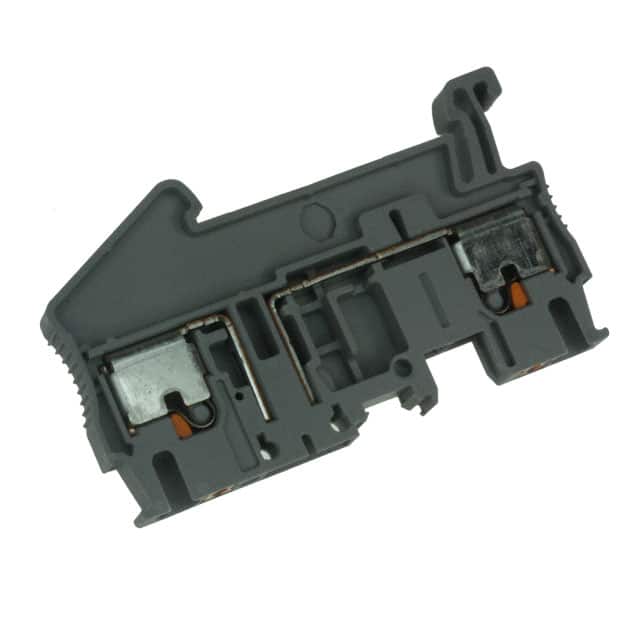

This Phoenix Contact 3210185 disconnect terminal block is a 2-position, single-level device designed for DIN rail mounting. It features an open disconnect type with a leg spring (push-in) connection, accepting solid wires from 0.14 to 4 mm² (26-12 AWG) and stranded wires from 0.14 to 2.5 mm². The nominal current rating is 20 A with a nominal voltage of 400 V (per datasheet; existing database lists 300 V). Rated surge voltage is 6 kV with pollution degree 3, surge voltage category III, and insulating material group I. The insulating material is gray PA (polyamide) with a flammability class of V0 per UL 94. Dimensions: width 5.2 mm, length 62 mm, height 36.5 mm on NS 35/7.5 rail or 44 mm on NS 35/15 rail. Stripping length is 10 mm. The terminal block complies with IEC 60947-7-1. Each unit weighs 0.00865 kg and is packaged in quantities of 50. RoHS3 compliant since April 2009.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.84 | $2.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
20 A.
400 V nominal.
DIN Rail (NS 35/7.5 or NS 35/15).
Solid: 0.14-4 mm² (26-12 AWG), stranded: 0.14-2.5 mm².
Push In, Spring (leg spring connection).
Gray.
