| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 2 Conductors TWIN Ferrule with Plastic Sleeve Max | |
| AWG Max | |
| AWG Min | |
| Color | |
| Conductor Cross Section (Stranded) Max | |
| Conductor Cross Section (Stranded) Min | |
| Conductor Cross Section Solid Max | |
| Conductor Cross Section Solid Min | |
| Conductor Cross Section Stranded with Ferrule with Plastic Sleeve Max | |
| Conductor Cross Section Stranded with Ferrule with Plastic Sleeve Min | |
| Conductor Cross Section Stranded with Ferrule without Plastic Sleeve Max | |
| Conductor Cross Section Stranded with Ferrule without Plastic Sleeve Min | |
| Current | |
| Current (Rated) | |
| Disconnect Type | |
| Flammability | |
| Flammability Class | |
| Height | |
| Insulating Material | |
| Insulating Material Group | |
| Internal Cylindrical Gage | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pack Quantity | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Stripping Length | |
| Surge Voltage Category | |
| Terminal | |
| Terminal Width | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage - Rated | |
| Weight per Piece | |
| Wire Gauge or Range | |
| Wire Gauge or Range (max) | |
| Wire Gauge or Range (min) |

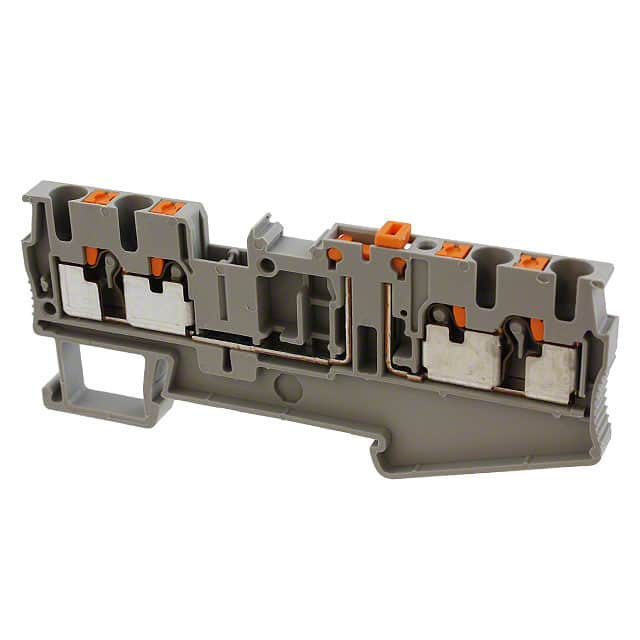

This Phoenix Contact 3210172 disconnect terminal block features a knife switch disconnect type for easy circuit isolation. It has 4 positions in a single level, with leg spring (push-in) termination for quick and reliable wiring. The terminal block is rated for 20A continuous current and 400V rated voltage, with a rated surge voltage of 6 kV, pollution degree 3, and surge voltage category III. The insulating material is polyamide (PA) with a flammability rating of UL 94 V0. It mounts on DIN rails NS 35/7.5 or NS 35/15, with dimensions of 84 mm length, 5.2 mm width, and heights of 36.5 mm on NS 35/7.5 or 44 mm on NS 35/15. The conductor cross-section range is 0.14 mm² to 4 mm² solid (26-12 AWG), and 0.14 mm² to 2.5 mm² stranded. Stripping length is 10 mm. The open side panel allows for bridging. Each piece weighs 0.012378 kg and is supplied in a pack of 50 pieces. This component is suitable for industrial control panels and power distribution systems requiring reliable disconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.67 | $5.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
20 A.
400 V.
NS 35/7.5 and NS 35/15 DIN rails.
Knife switch.
26 to 12 AWG (0.14 mm² to 4 mm² solid).
UL 94 V0.
