Mfr Part #:

3210062

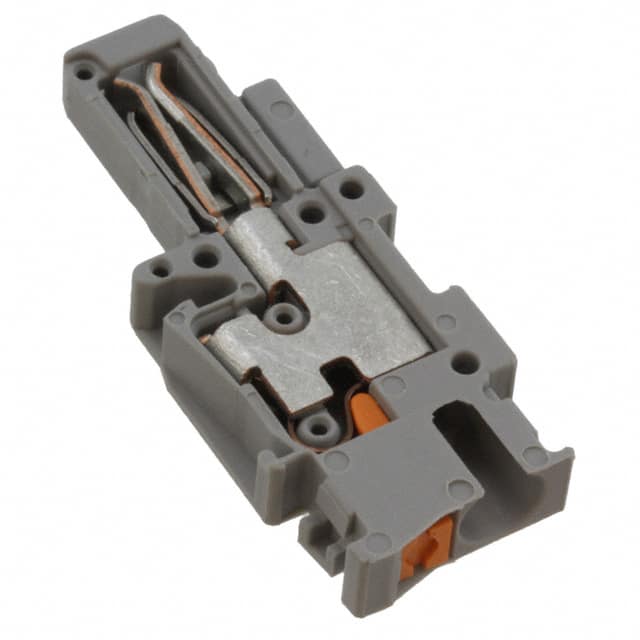

Phoenix Contact 3210062 is a 1-position plug with female sockets, featuring push-in connection, 5.2 mm pitch, rated 24 A and 500 V.

✓ Total Stock: 97 pcs

$ Price Range: $1.54

3210062 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tomark Electronics Ltd ✓ Non-Authorised Inventory information	97 pcs On Request	97 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

3210062 Description

Short technical summary and product information.

The Phoenix Contact 3210062 (PP-H 2,5/1-L) is a 1-position terminal block plug with female sockets, designed for free hanging (in-line) mounting. It utilizes a push-in connection method, accommodating wire cross sections from 0.14 mm² to 4 mm² (AWG 26-12) with a stripping length of 8-10 mm.

Electrical ratings include a nominal current of 24 A and a nominal voltage of 500 V, with a rated surge voltage of 6 kV. The plug meets overvoltage category III and pollution degree 3 standards, with insulating material group I. The housing is made of gray PA (polyamide) with a flammability rating of UL 94 V0.

This plug is suitable for railway, machine building, and plant engineering applications. It features side interlocking for secure multi-position assembly and a 180° wire entry angle. The operating temperature range is -60 °C to 130 °C, and it complies with fire protection standards for rail vehicles (DIN EN 45545-2, HL 1 - HL 3).

3210062 Quick Information

Product Type: Terminal Block Plug

Canonical Name: Phoenix Contact PP-H 2,5/1-L Plug, Female Sockets

Subcategory: Headers, Plugs and Sockets

3210062 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

3210062 Estimated Pricing

Qty	Low	High
1+	$1.54	$1.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

3210062 Features

1-position plug with push-in connection.
Rated for 24 A and 500 V nominal.
Accepts 0.14-4 mm² wire cross section.
Gray PA housing, UL 94 V0 rated.
Side interlocking for multi-pole assembly.

3210062 Applications

Used in railway industry control systems.
Suitable for machine building applications.
Ideal for plant engineering installations.
For free hanging in-line wiring connections.

3210062 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating of the Phoenix Contact 3210062?

The nominal current rating is 24 A, with a maximum load current of 24 A at 4 mm² conductor cross section.

What is the voltage rating of this terminal block plug?

The nominal voltage is 500 V, with a rated surge voltage of 6 kV.

What wire sizes does the 3210062 accept?

It accepts solid conductors from 0.14 mm² to 4 mm² (AWG 26-12) with a stripping length of 8-10 mm.

What is the pitch of this plug?

The pitch is 5.2 mm.

How many positions does this plug have?

It has 1 position and 1 level.

What mounting type does the 3210062 use?

It is designed for free hanging (in-line) mounting.

What is the housing material and flammability rating?

The housing is made of gray PA (polyamide) with a flammability rating of UL 94 V0.

Category	Headers, Plugs and Sockets
Manufacturer Name	Phoenix Contact
Color	Gray
Connection Method	Push-in connection
Country of Origin	Poland
Current	20 A
Current Rating	24 A
Features	Interlocking (Side)
Height	40.2 mm
Housing Material	PA (Polyamide)
Lead Style	Screwless - Push-In Spring
Length	15.8 mm
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	1
Pitch	5.2 mm
Plug Wire Entry	180°
Positions Per Level	1
Termination Style	Screwless - Push-In Spring
Type	Plug, Female Sockets
Voltage	300 V
Voltage Rating	500 V
Width	5.2 mm
Wire Gauge or Range	0.14-4 mm² (AWG 26-12)
