| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Termination Style | |
| Voltage Rating |

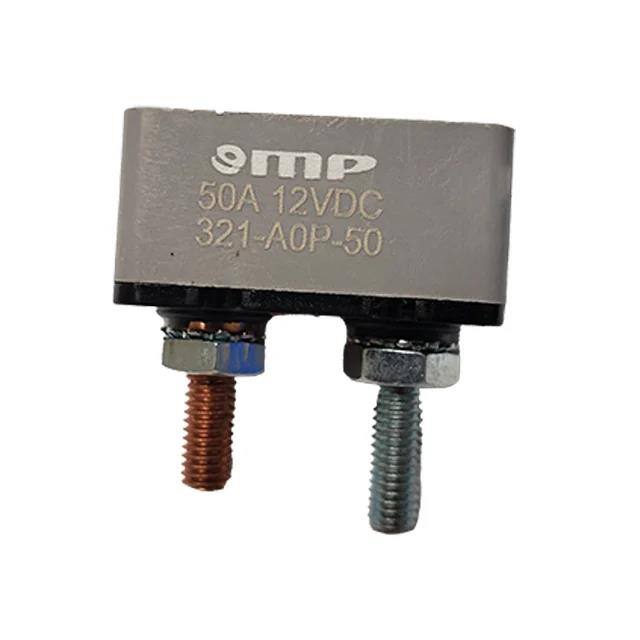

The Mechanical Products 321-A0P-50-B-CC is a Series 32 circuit breaker designed for superior circuit protection. It offers a standard amp rating of 50A and is suitable for 12 VDC systems. This breaker features an automatic reset mechanism, making it convenient for applications requiring self-restoring protection.
Compliance with SAE standards J553 and J1171 ensures ignition protection, making it suitable for environments where flammable vapors may be present. The operating temperature range is -40 to +85°C, providing reliable performance in various conditions. Terminations are #10-32 thread options with a maximum torque of 24 in-lb.
This circuit breaker is chassis mountable and designed for robust performance. It is part of the Mechanical Products Series 32, known for its reliability in demanding applications. The breaker type is Shortstop, indicating its fast-acting protection capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 50A.
The operating voltage is 12 VDC.
It features an automatic reset.
It complies with SAE Standard J553 & J1171 (Ignition Protected).
The operating temperature range is -40 to +85°C.
It uses chassis mount.
