| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Standard | |
| Custom Tariff Number | |
| Degree of Pollution | |
| Flammability Rating | |
| Height (Nominal @ Mounting rail NS 35/15) | |
| Height (Nominal @ Mounting rail NS 35/7.5) | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Nominal Cross Section | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Number of Potentials | |
| Overvoltage Category | |
| Packing Unit | |
| Rated Surge Voltage | |
| Relative Temperature Index (Elec.) | |
| Standard Package Quantity | |
| Static Cold Application | |
| Temperature Index (DIN EN 60216-1) | |
| Terminal | |
| Termination Style | |
| Type | |
| Weight per Piece | |
| Width | |
| Wire Gauge (Minimum/Maximum @ AWG) | |
| Wire Gauge (Minimum/Maximum @ Solid conductor) | |
| Wire Gauge or Range |

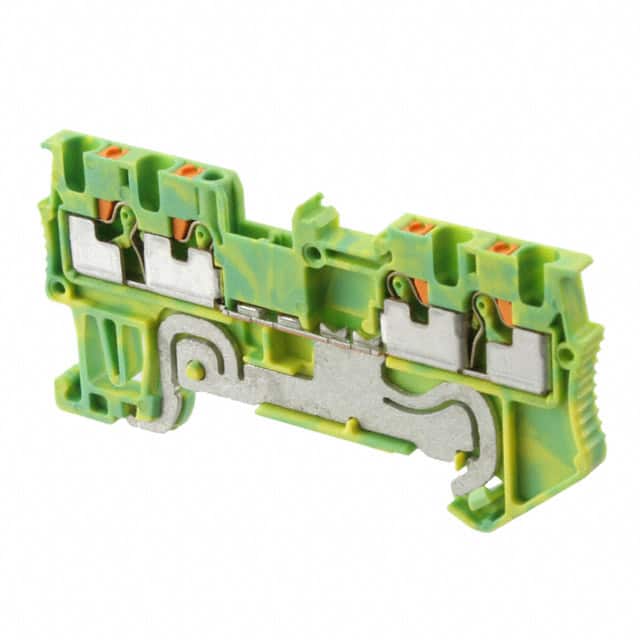

The Phoenix Contact PT 1,5/S-QUATTRO-PE (3208333) is a ground modular terminal block designed for DIN rail mounting on NS 35/7.5 or NS 35/15 rails. It features a push-in connection method for tool-free wiring of solid conductors or conductors with ferrules, accepting wire sizes from 0.14 mm² to 1.5 mm² (26 AWG to 14 AWG). The terminal block has 4 connections on a single level, with a nominal cross section of 1.5 mm². It is rated for a surge voltage of 6 kV (overvoltage category III, degree of pollution 3, insulating material group I). The housing is made of polyamide (PA) with a green-yellow color, and has a flammability rating of V0 per UL 94. The compact design (3.5 mm width, 63.2 mm length) and front connection enable wiring in confined spaces. It includes a double function shaft for testing and an additional test connection. The terminal block is tested for railway applications and complies with IEC 60947-7-2.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.07 | $6.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions (connections).
It accepts solid conductors from 0.14 mm² to 1.5 mm², equivalent to 26 AWG to 14 AWG.
It mounts on DIN rails NS 35/7.5 or NS 35/15.
The rated surge voltage is 6 kV (overvoltage category III, degree of pollution 3).
The housing is green-yellow polyamide (PA) with a flammability rating of V0 per UL 94.
