| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Color | |
| Conductor Cross Section (Minimum/Maximum @ solid) | |
| Conductor Cross Section (Minimum/Maximum @ stranded with ferrule, with plastic sleeve) | |
| Conductor Cross Section (Minimum/Maximum @ stranded with ferrule, without plastic sleeve) | |
| Conductor Cross Section (Minimum/Maximum @ stranded) | |
| Connection Method | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Height (Nominal @ NS 35/15) | |
| Height (Nominal @ NS 35/7.5) | |
| Housing Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Current IN | |
| Number of Levels | |
| Number of Positions | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Standard | |
| Standard Package Quantity | |
| Stripping Length | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Width | |
| Wire Gauge Range | |
| Wire Gauge or Range |

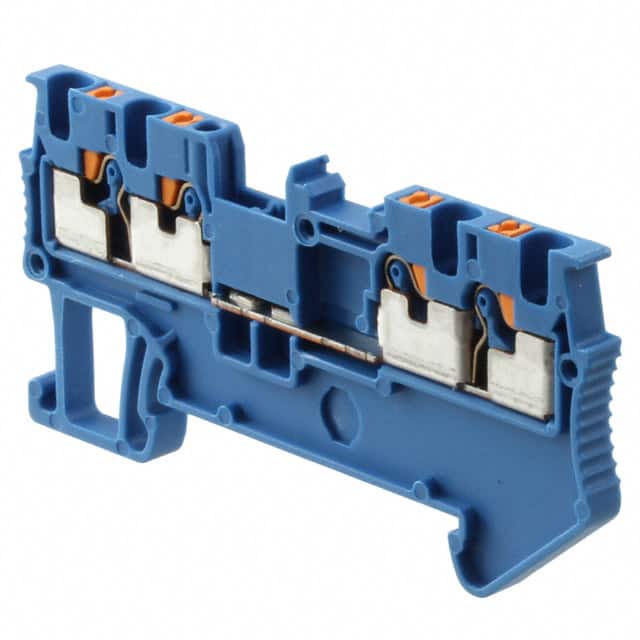

The Phoenix Contact 3208208 is a feed-through terminal block from the PT 1,5/S-QUATTRO series. It features a push-in connection method for tool-free wiring of solid or ferruled conductors. The terminal block has 4 positions in a single level and is rated for 500V nominal voltage and 17.5A nominal current (with 1.5 mm² conductor cross section).
The housing is made of polyamide (PA) with a UL 94 V0 flammability rating, ensuring high mechanical and thermal resistance. The blue color aids in identification. The terminal block accepts wire cross sections from 0.14 to 1.5 mm² (26-16 AWG) and requires an 8 mm stripping length.
Designed for DIN rail mounting on NS 35/7.5 or NS 35/15 rails, the terminal block has a width of 3.5 mm and a length of 63.2 mm. It complies with IEC 60947-7-1 and is suitable for industrial control panels and junction boxes. The rated surge voltage is 6 kV with pollution degree 3.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.83 | $1.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
17.5 A (with 1.5 mm² conductor cross section).
500 V nominal voltage.
NS 35/7.5 and NS 35/15 DIN rails.
26-16 AWG (0.14-1.5 mm²) solid or stranded.
Blue.
Push-in connection for tool-free wiring.
