| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Flammability Rating | |
| Industrial Grade | |
| Insulation | |
| Insulation Material | |
| Lead Style | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Sleeve Material | |
| Stud | |
| Stud Size | |
| Terminal Body Material | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Voltage Rating | |
| Width | |
| Wire Gauge |

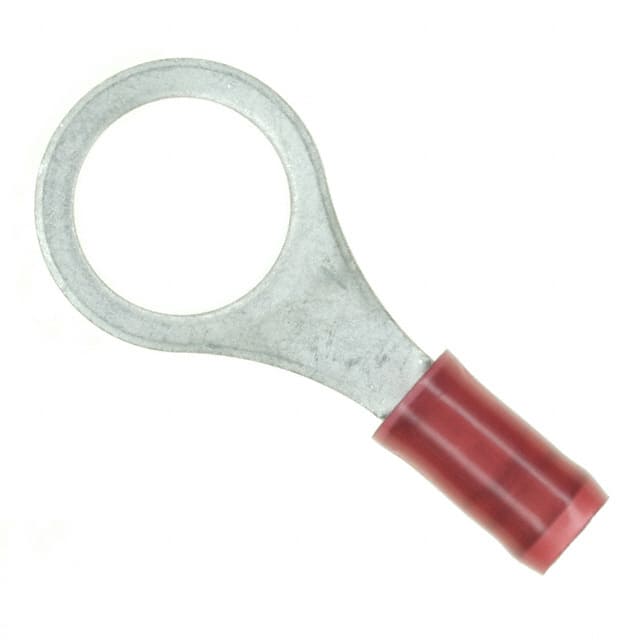

The TE Connectivity 320573 is a PIDG (Pre-Insulated Diamond Grip) ring tongue terminal designed for 16-22 AWG wire and a 3/8 stud size. It is constructed with a high conductivity copper terminal body and a tin-plated finish per ASTM B-545, providing optimal corrosion resistance. A copper sleeve reinforces the wire insulation for improved vibration resistance, while the inner serrations on the body maximize electrical contact and tensile strength. The nylon insulation is color-coded red for wire gauge identification and carries a UL 94V-2 flammability rating. This terminal supports a maximum operating temperature of 105°C and a voltage rating of 300V. The free hanging (in-line) mounting and crimp termination make it suitable for a variety of applications in industrial control, lighting, power supplies, panel boxes, and transportation equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.89 | $0.89 |
| 25+ | $0.83 | $0.83 |
| 50+ | $0.79 | $0.79 |
| 100+ | $0.76 | $0.76 |
| 250+ | $0.71 | $0.71 |
| 500+ | $0.68 | $0.68 |
| 1,000+ | $0.64 | $0.64 |
| 3,000+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300V maximum operating voltage.
Free hanging (in-line) mounting.
105°C maximum operating temperature.
16-22 AWG wire.
3/8 stud size.
Nylon insulation with UL 94V-2 flammability rating.
Tin-plated contact finish.
