| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Stranded) (Minimum/Maximum) | |
| Conductor Cross Section Solid (Minimum/Maximum) | |
| Connection Standard | |
| Flammability Class (UL 94) | |
| Height (NS 35/15) | |
| Height (NS 35/7.5) | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Standard Package Quantity | |
| Stranding Standard | |
| Surge Voltage Category | |
| Tape & Reel | |
| Terminal | |
| Termination Style | |
| Type | |
| Width | |
| Wire Gauge or Range | |
| Wire Insulation Material | |
| awg (Minimum/Maximum) |

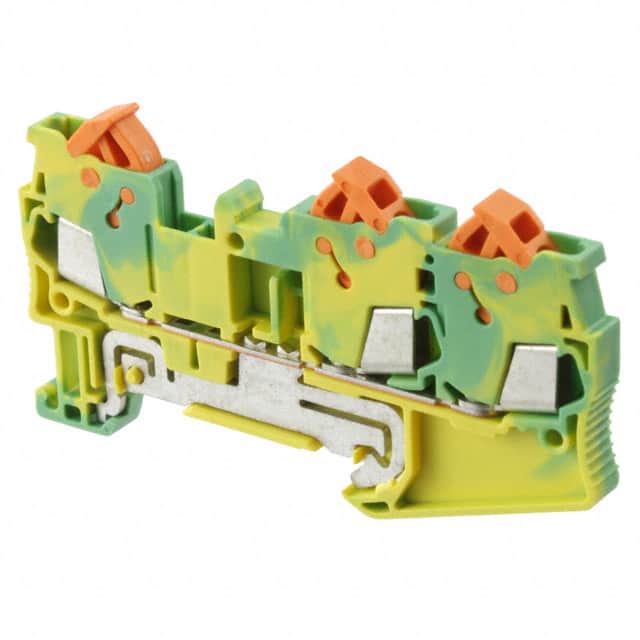

This Phoenix Contact 3205064 ground terminal block is a modular component designed for DIN rail mounting. It features 3 positions in a single level, with a quick connection termination style. The wire range accommodates solid or stranded conductors from 0.25 mm² to 1.5 mm² (24 AWG to 16 AWG).
The insulating material is polyamide (PA) with a flammability class of V0 per UL 94. The terminal block is rated for a surge voltage of 8 kV, pollution degree 3, and surge voltage category III, with insulating material group I. It complies with IEC 60947-7-2 connection standard.
Dimensions: width 5.2 mm, length 76.4 mm, height 39.3 mm on NS 35/7.5 rail or 46.8 mm on NS 35/15 rail. The green-yellow color indicates its use as a ground/earth terminal. The product is RoHS and REACH compliant per available documentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.30 | $8.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
0.25 mm² to 1.5 mm² (24 AWG to 16 AWG).
Quick connection.
NS 35/7.5 and NS 35/15.
8 kV.
Green-yellow.
V0 per UL 94.
