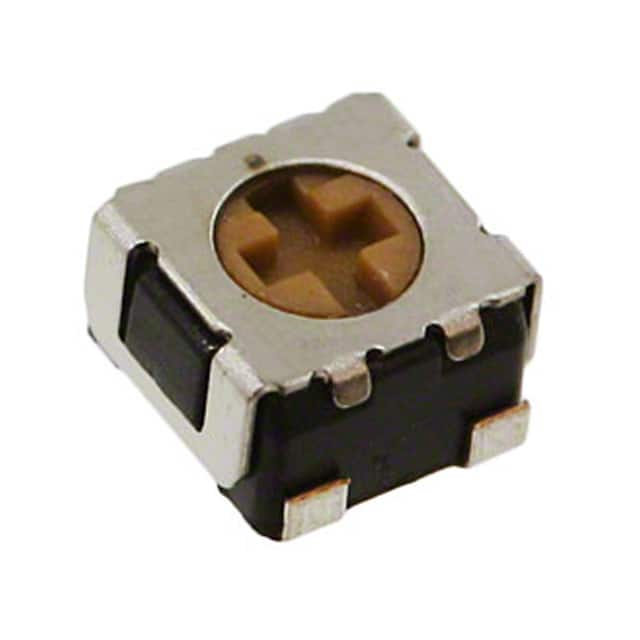

3203X203P The TE Connectivity 3203X203P is a trimmer potentiometer with 20kΩ resistance and a power rating of 0.05W. It features a surface mount design with J lead termination.
Mfr Part #:

3203X203P

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 3203X203P is a trimmer potentiometer with 20kΩ resistance and a power rating of 0.05W. It features a surface mount design with J lead termination.
✓ Total Stock: 2,000 pcs
$ Price Range: $0.05

3203X203P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3203X203P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Temperature Coefficient
Termination Style
Tolerance
View Similar Products (0)

3203X203P Description

Short technical summary and product information.

The TE Connectivity 3203X203P is a surface mount trimmer potentiometer designed for electronic circuits. It offers a resistance value of 20 kΩ with a tolerance of ±25% and a power rating of 0.05W (1/20W).



This component features a Cermet resistive material and a top adjustment type with a single turn. The size is square, measuring 0.134" x 0.134" face with a height of 0.079" (3.40mm x 3.40mm x 2.00mm). The termination style is J lead, suitable for surface mounting applications.



The temperature coefficient is ±250ppm/°C. The part is RoHS compliant and has an MSL rating of 1. It is available in various packaging options including Tape & Reel (TR), Cut Tape (CT), and Digi-Reel®.

3203X203P Quick Information

Product Type: Trimmer Potentiometer
Series: 3203, Citec
Canonical Name: TE Connectivity 3203X203P Trimmer Potentiometer
Subcategory: Trimmer Potentiometer

3203X203P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3203X203P Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

3203X203P Features

  • 20kΩ resistance with ±25% tolerance.
  • 0.05W power rating at 25°C.
  • Surface mount with J lead termination.
  • Cermet resistive material for stability.
  • Compact size: 3.40mm x 3.40mm x 2.00mm.

3203X203P Applications

  • Ideal for circuit calibration adjustments.
  • Suitable for automated assembly processes.
  • Used in compact electronic devices.
  • Provides precise resistance setting.

3203X203P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the 3203X203P trimmer potentiometer?

The resistance value is 20 kΩ.

What is the power rating of the 3203X203P?

The power rating is 0.05W, or 1/20W.

What is the tolerance for the 3203X203P trimmer potentiometer?

The tolerance is ±25%.

How is the 3203X203P mounted?

It is a surface mount component.

What type of termination does the 3203X203P have?

It has J lead termination.

What is the temperature coefficient of the 3203X203P?

The temperature coefficient is ±250ppm/°C.

What are the package options for the 3203X203P?

It is available in Tape & Reel (TR), Cut Tape (CT), and Digi-Reel®.
