| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conductor Cross Section (Stranded) Max | |
| Conductor Cross Section (Stranded) Min | |
| Contact Termination | |
| Contact Type | |
| Core Diameter (Including Insulation) Max | |
| Core Diameter (Including Insulation) Min | |
| Minimum Order Quantity | |
| Nominal Current | |
| Overall Height | |
| Overall Length | |
| Overall Width | |
| Packing Unit | |
| Pin or Socket | |
| Stripping Length |

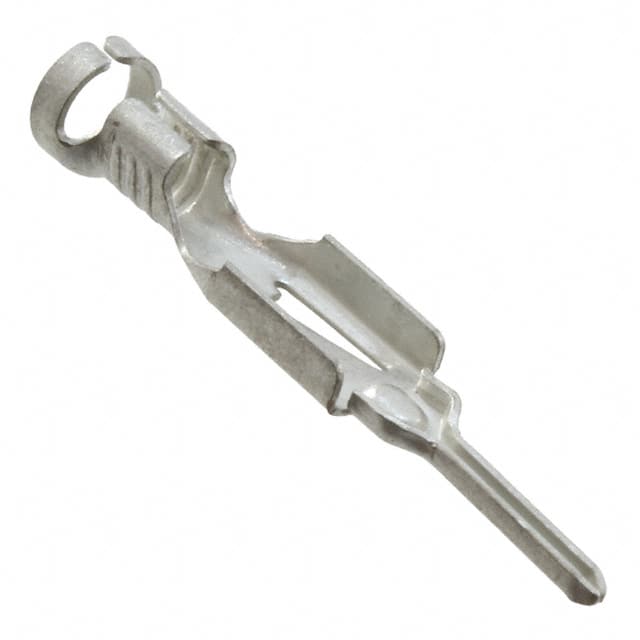

The Phoenix Contact 3190580 ICC-MT 1,5-2,5 is a male crimp contact pin designed for use with ICC connector shells. This contact is inserted into the connector housing after the conductor has been crimped, providing a reliable and secure connection for industrial applications.
Rated for a nominal current of 12 A, this contact accepts stranded conductors with cross sections from 1.5 mm² to 2.5 mm². The core diameter including insulation ranges from 2.11 mm to 3.1 mm, and the stripping length is 4 mm. The contact has an overall length of 24.9 mm, width of 4.2 mm, and height of 2.1 mm.
This product is part of the ICC-MT series from Phoenix Contact and is manufactured in Germany. It is packaged individually with a minimum order quantity of 100 pieces. The contact is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
| 10+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 12 A.
It accepts stranded conductors from 1.5 mm² to 2.5 mm².
The stripping length is 4 mm.
The overall length is 24.9 mm.
It is indicated as RoHS3 compliant, but this is unverified.
