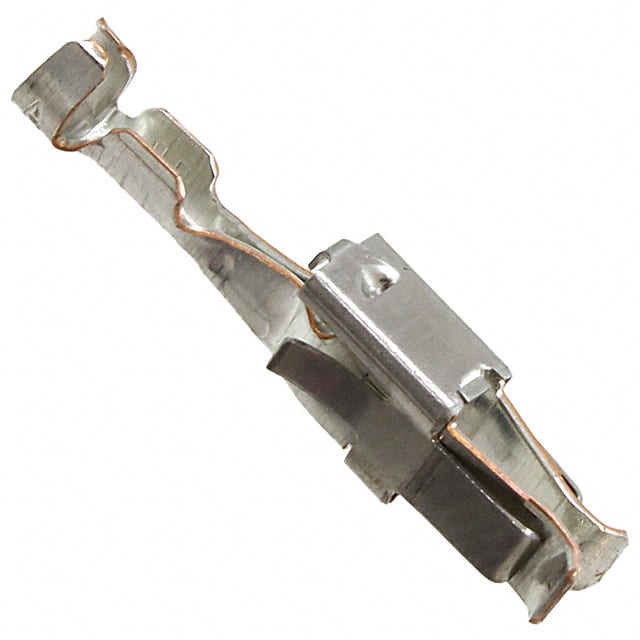

3190551 Socket contact with crimp termination, tin-plated copper iron, rated 12A, suitable for 1.5-2.5mm² stranded conductors.
Mfr Part #:

3190551

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Socket contact with crimp termination, tin-plated copper iron, rated 12A, suitable for 1.5-2.5mm² stranded conductors.
✓ Total Stock: 2,085 pcs
$ Price Range: $0.54 - $0.67

3190551 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
85 pcs
On Request
85 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3190551 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Contact Termination
Current Rating
Lead Style
Pin or Socket
SVHC Present
Termination Style
Type
View Similar Products (0)

3190551 Description

Short technical summary and product information.

The Phoenix Contact 3190551 (MSTBC-MT 1,5-2,5) is a socket contact designed for use with MSTBC series plug housings. It is a module female contact that is inserted into the housing after crimping the conductor. The contact features a crimp termination, accepting stranded conductors from 1.5 to 2.5 mm². Contact material is copper iron with a tin-plated surface. The nominal current rating is 12 A. The core diameter including insulation ranges from 2.11 to 3.1 mm, with a stripping length of 4 mm. This product is RoHS compliant since January 2003 and is supplied in packs of 100 pieces. It is suitable for industrial control and automation applications where reliable, tool-free connections are required.

3190551 Quick Information

Product Type: Socket Contact
Series: MSTBC
Canonical Name: MSTBC-MT 1.5-2.5 Socket Contact
Subcategory: Terminal Block Contacts

3190551 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3190551 Estimated Pricing

Qty Low High
1+ $0.67 $0.67
50+ $0.62 $0.62
100+ $0.54 $0.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

3190551 Features

  • Crimp termination for secure wire connection.
  • Tin-plated copper iron contact material.
  • Rated for 12A nominal current.
  • Accepts 1.5 to 2.5 mm² stranded wires.
  • Suitable for MSTBC plug housings.

3190551 Applications

  • Ideal for industrial control panel wiring.
  • Used in modular connector systems.
  • Suitable for automation and machinery.
  • For wire-to-board connections in harsh environments.

3190551 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of Phoenix Contact 3190551 socket contact?

12 A nominal.

What wire range does this contact accept?

Stranded conductors from 1.5 to 2.5 mm².

What termination style is used?

Crimp termination.

What is the contact material and finish?

Copper iron (CuFe) with tin plating.

Is this component RoHS compliant?

Yes, RoHS compliant since 2003-01-01.
